Wolf Rack Single Side

General

The Wolf Rack has an A-frame structure manufactured from 2mm thick sheet metal. The frames have an open structure. The tops of the individual A-frames contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts, while load bars are fitted into slots at the base of the A-frames on each side. The load bars are also fastened by self-aligning bolts screwed into rivet nuts, which are permanently fixed at the base of the A-frames. This produces a rigid connection and allows assembly without special skills and only one tool.

Features

• The Wolf Rack transport racks include several modular A-frames formed from 2 mm sheet metal secured to one another.
• Frame-bearing surfaces are rubber-topped, sloping inwards, while perpendicular support surfaces are cushioned with resilient rubber material to protect and retain the materials loaded upon the transport racks.
• The bearing surfaces are configured to be as low as possible in the A-frame of the Wolf Rack transport rack to provide for a minimal lift height for loading and unloading while at the same time-space is also available for the forks of a forklift truck and pallet jacks.
• The Wolf Racks are lightweight yet strong and easily assembled and disassembled.
• The Wolf Rack has an A-frame structure that is reducible to a compact empty shipping size by one worker using one tool.
• The Wolf Racks are assembled from a few parts, reducing the assembly and disassembly time and making the operation simple.
• Further, the compacted Wolf Racks are light so that they can be manhandled into a van or onto a truck for return shipping.

Options:

• Optionally includes clip-on safety posts, which urge the carried objects against the A-frame assembly to provide for secure transportation of large objects, such as stone and glass sheets, while moving on the concrete floor in factories and construction sites.
• It also optionally includes quick-fit wheels and handles using the same bolts and tools used to assemble the frame.
• Aardwolf offers many types of Wolf Racks, such as WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000, and Wolf Rack Pocket models, such as WRP1270-1200, WRP1270-1600, WRP1270-2000, and Wolf Racks Single Sides as WRSS750, WRSS1000, WRSS1270.

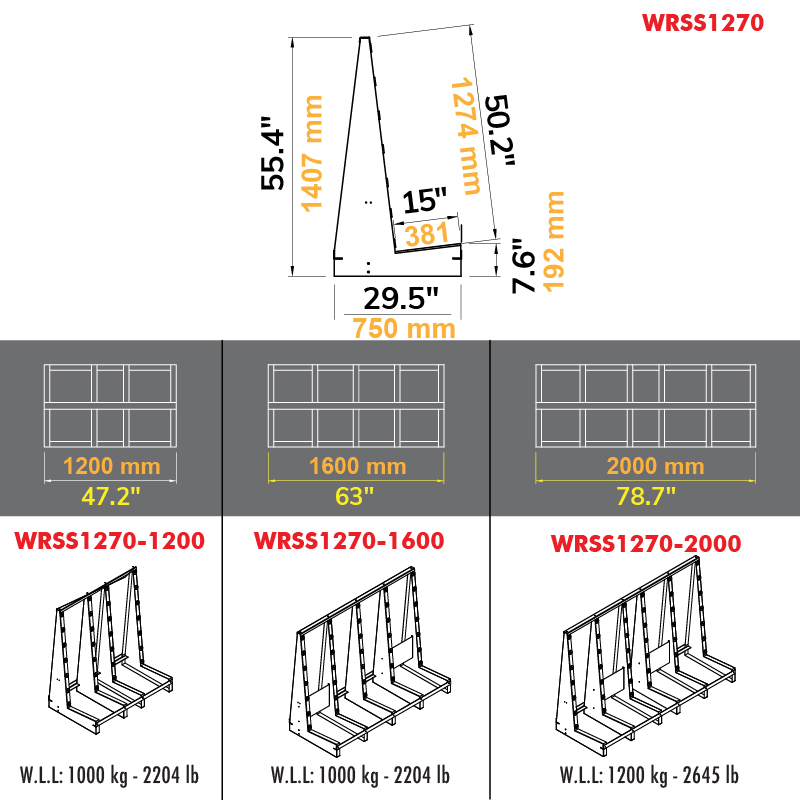

Specifications

WRSS1270-1200:

WRSS1270-1600:

WRSS1270-2000:

Patent Pending
