General

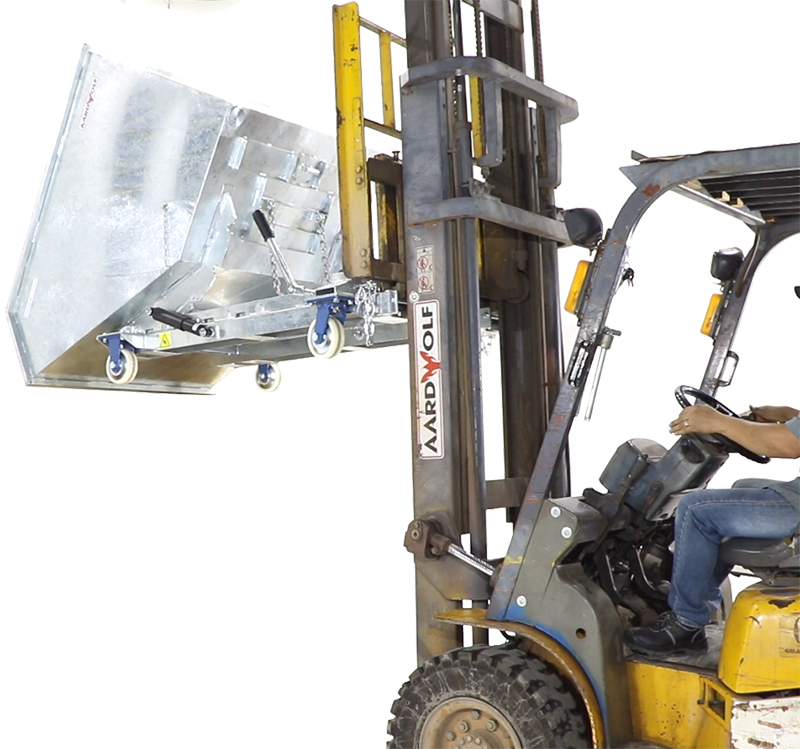

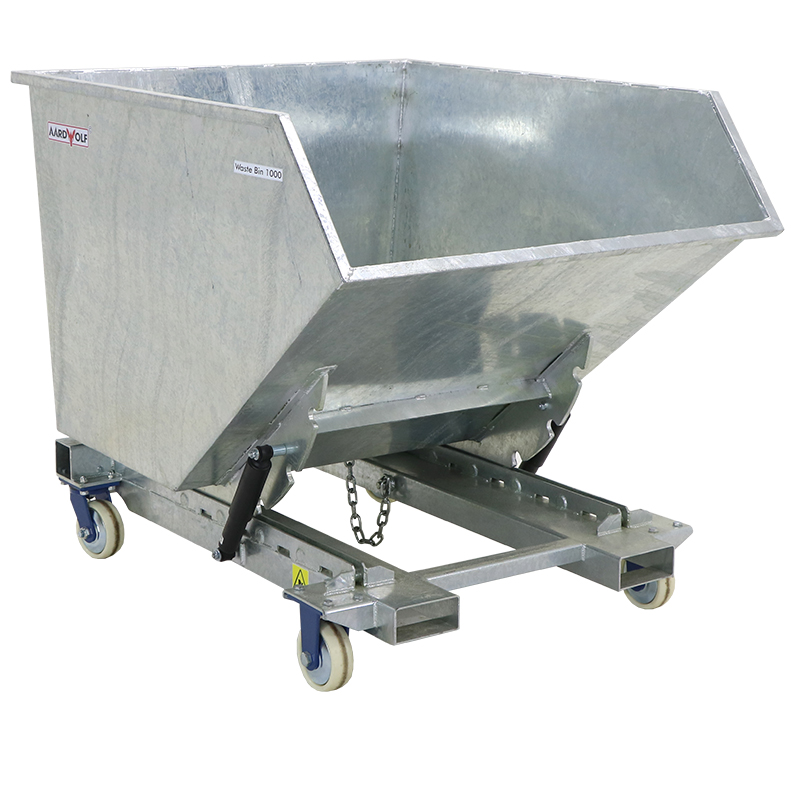

Manufactured from a 3mm plate. The bottom is reinforced to ensure the long life of the bin. The forklift operator activates the release mechanism, pulling the draw rope from the driver’s seat. The custom-built shock absorber prevents impact forces from being transmitted to the forklift during emptying—galvanized finish.
Options include
- Wheels
- Air shocks
- Drain cock and strainer
Specifications
|
Metric
|
Imperial
|
|
| Working load limit | 1500 kg | 3307 lb |
| Net weight | 221 kg | 487 lb |
| Gross weight | 222 kg | 489 lb |
| Package dimension | 1540x1200x1220 mm | 60.6″x47.2″x48″ |
