General

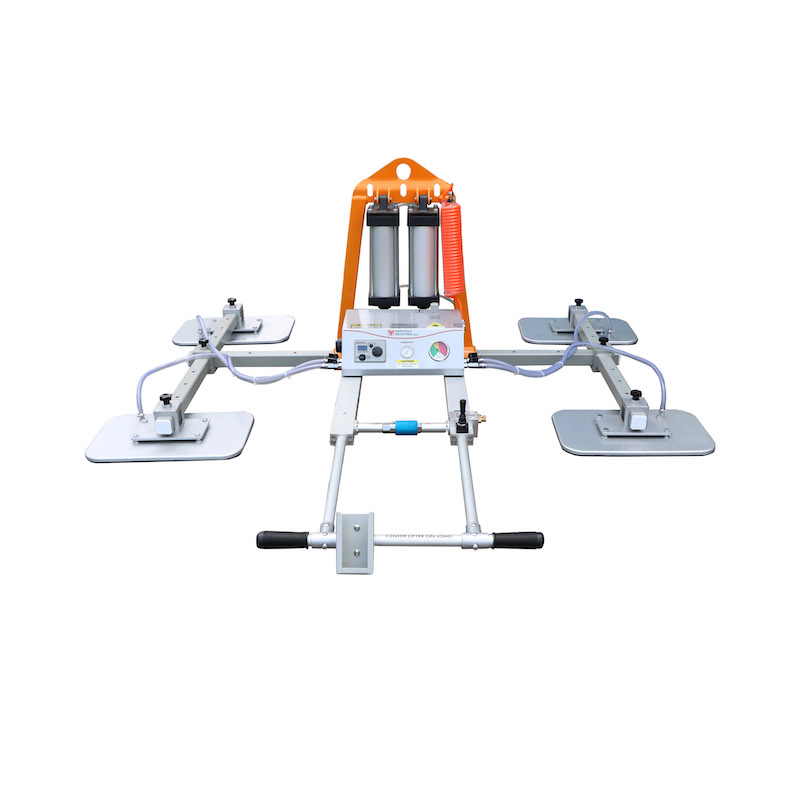

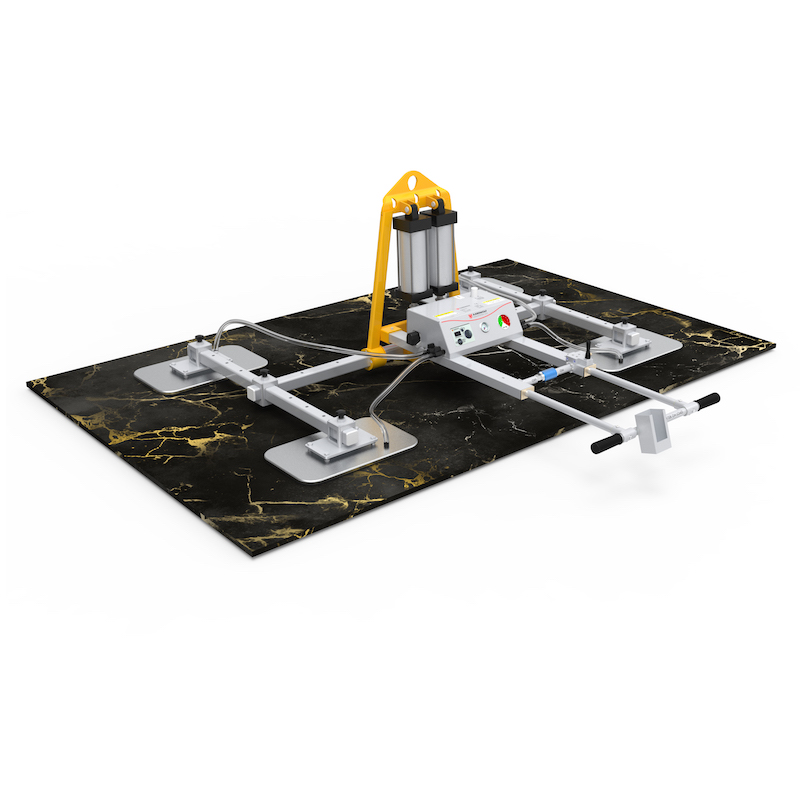

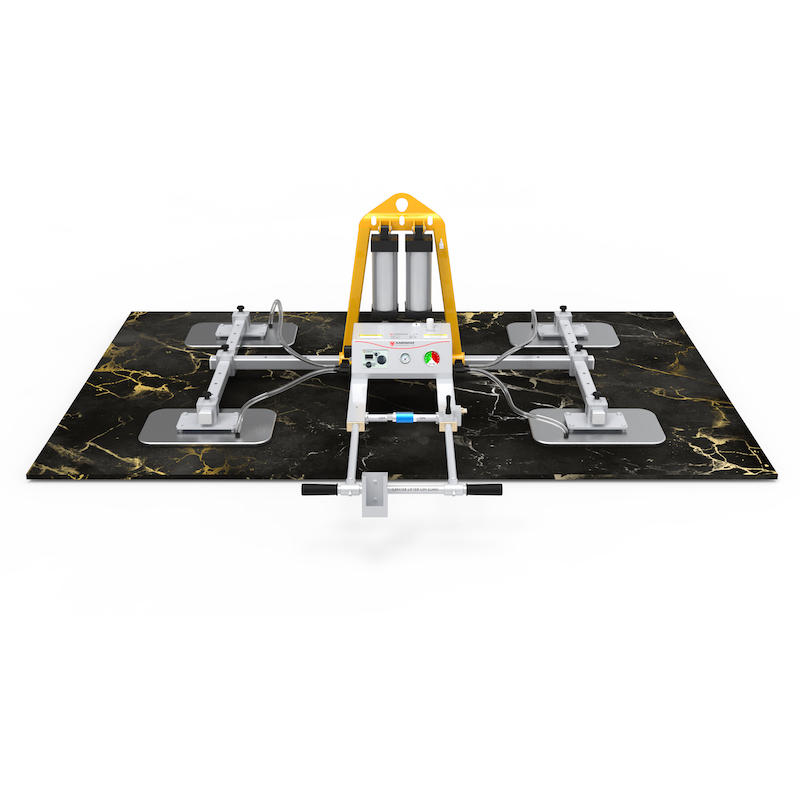

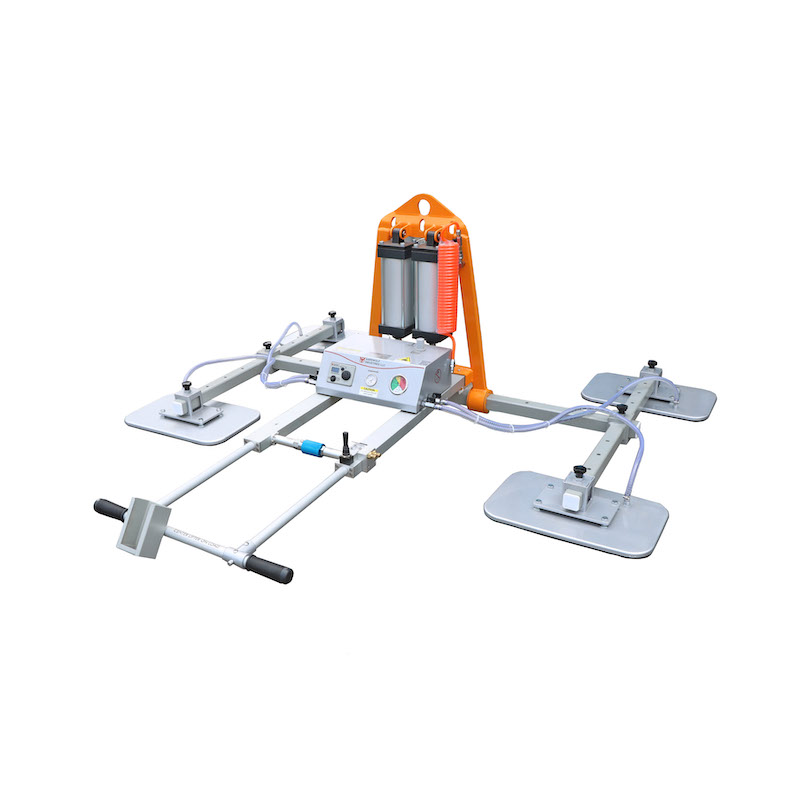

The Aardwolf Vacuum Lifter (AVLP4-P-1000) is engineered for precision, durability, and energy efficiency in handling marble and granite surfaces. With 90° material tilting, dual operation modes, and an energy-saving system, it’s perfect for workshops, construction sites, and manufacturing facilities.
Features
- Pneumatic Tilting: 0°-90° vertical-horizontal movement for versatile handling.
- Dual Operation Modes:
- Audio Alarm Mode: Activates a buzzer when vacuum pressure drops below 64 kPa.
- Energy Saver Mode: Automatically reactivates the pump when vacuum pressure is low and shuts it off when sufficient vacuum is achieved, optimizing air and energy usage.
- High Vacuum Performance: Ensures secure material grip, reducing slippage and damage.
- Adjustable handles: Extend from 76.2mm (3″) to 106.68mm (4.2″) for comfort.
- Durable Construction: The aluminum handle protects air and vacuum lines.
- Slide Valve: ON/OFF mechanism for quick material release.
- Safety System: Provides real-time monitoring and alerts for maximum safety, powered by a rechargeable battery for continuous operation.
- Adjustable Pad Configuration: Rotating pads adapt to various shapes and sizes.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 | – |

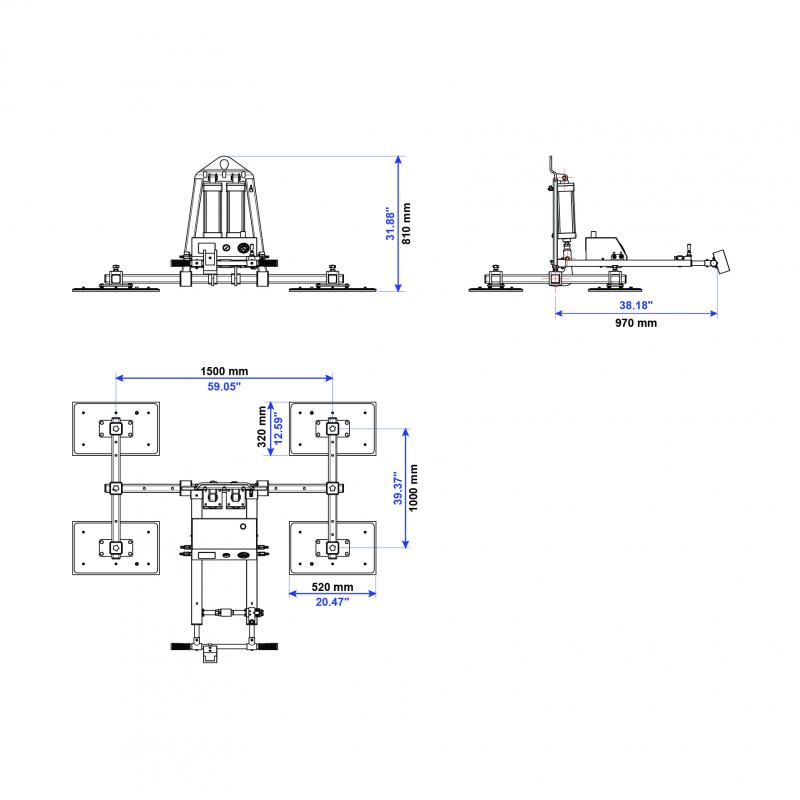

| Pad size | 500×300 mm | 19.7″x11.8″ |
| Working load limit | Vertical: 500 kg Horizontal:1000 kg |
1102 lb 2204 lb |
| Net weight | 104 kg | 229 lb |
| Gross weight | 144 kg | 317 lb |
| Packaging dimensions | L.1680xW.430xH.960 mm | 66.1″x16.9″x37.8″ |
- Battery information for the device
| Battery code | GBA 12V 2.0Ah Bosch |
| Battery type | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuous operation time with mode-saving pressure | 2 hours |
| Working time with mode saving pressure | 6 hours |
| Continuous operation time with mode audio alarm only | 120 hours |
| Working time with mode audio alarm only | 360 hours |
- Battery charger
| Battery code | GAL 12V-40 Bosch |
| Input supply voltage | 220-240VAC |
| Output voltage | 12V |
| Output current | 4.0Ah |
| Quantity | 1 |
| Full charger time | 0.5 hour |
| Weight | 460 gram |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
