General
The Vacuum Lifter Handy is powered by a venturi vacuum generator, which requires a compressed air source but no electricity. The vacuum generator has no moving parts, so no lubrication is required. This lifter consists of four (4) pads, which can be replaced with different pads to fit the sizes of materials.
Features
- Adjustable vacuum pads.
- Attach/release materials with an ON/OFF slide valve.
- A small 9V rechargeable battery independently powers the acoustic alarm system.
- Use the vacuum gauge to warn of low vacuum visually.
Specifications
- For stone, concrete, foam pads
|
Metric
|
Imperial
|
|
| Working load limit |
Pad sizes Kg 420×220 mm: 220 kg 500×300 mm: 380 kg |
19.7″x4.9″:278 lb 19.7″x5.9″:362 lb 16.5″x8.7″:485 lb 19.7″x11.8″:838 lb |
| Net weight | 45 kg | 40 lb |
| Gross weight | 50 kg | 51 lb |

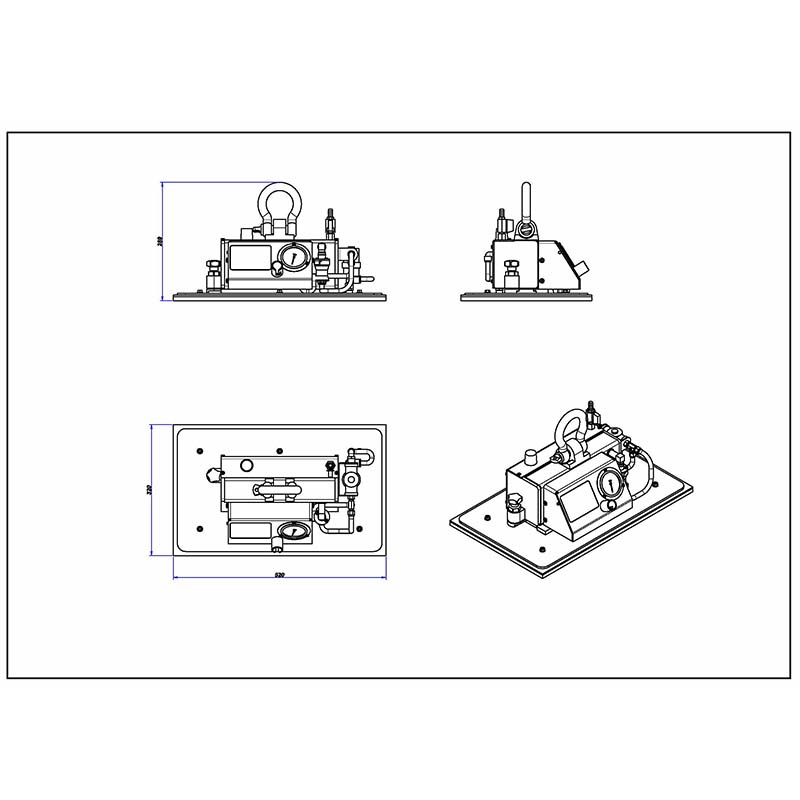

| Packaging dimensions | L.570xW.350xH.280 mm | 22.4″x13.7″x11″ |
- Battery information for the alarm system
| Power supply | 12V Lithium battery |
| Battery capacity | 4.0 Ah x 1 |
| Adapter | 12.6V-2A |
| Standby time | 120 hours |
| Charging cycle | 1000 times |
| Charging time | 2.5 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
