General

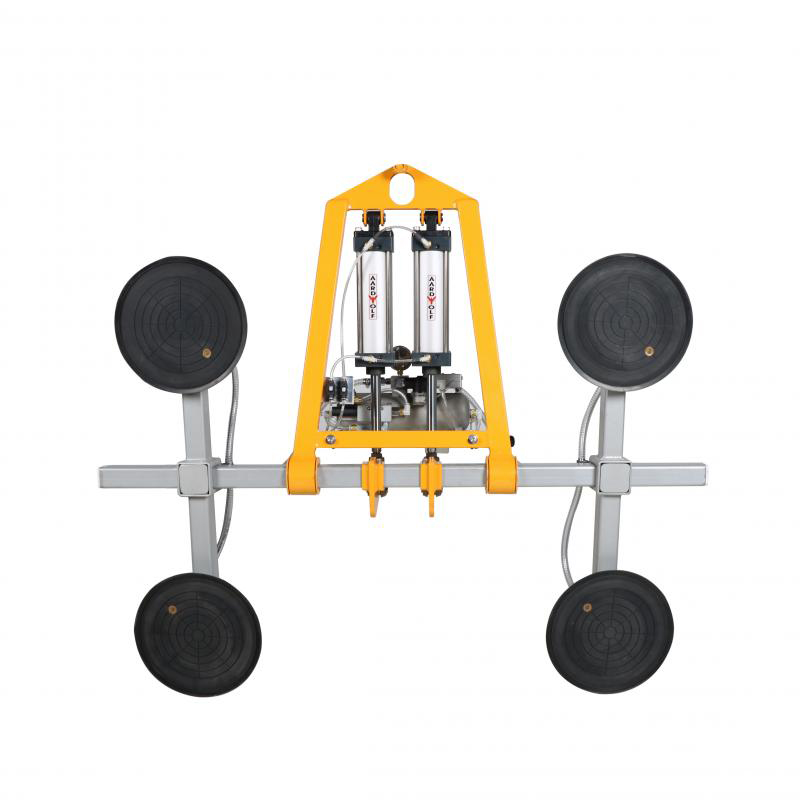

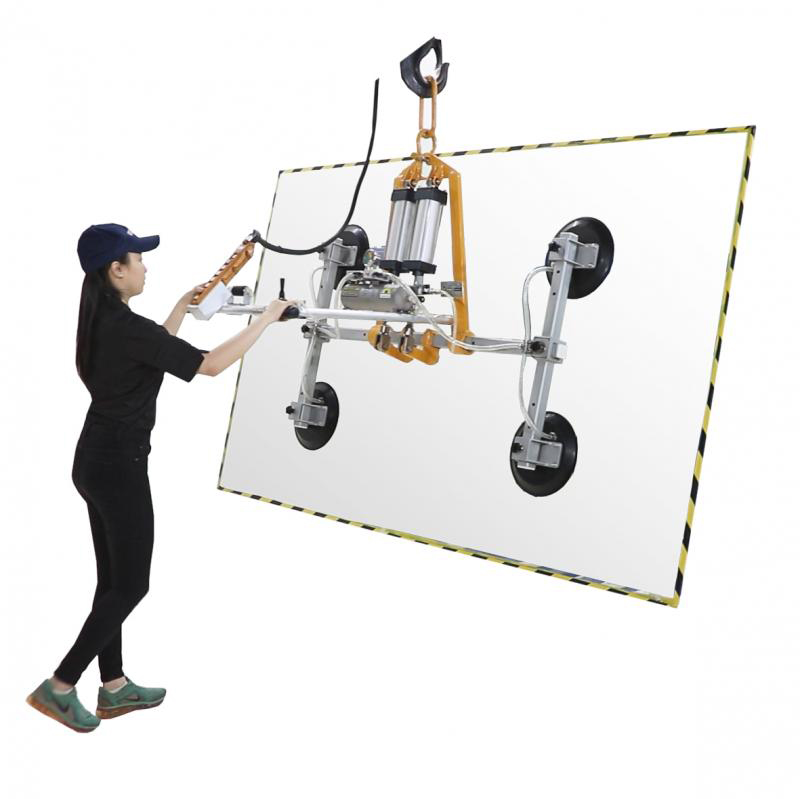

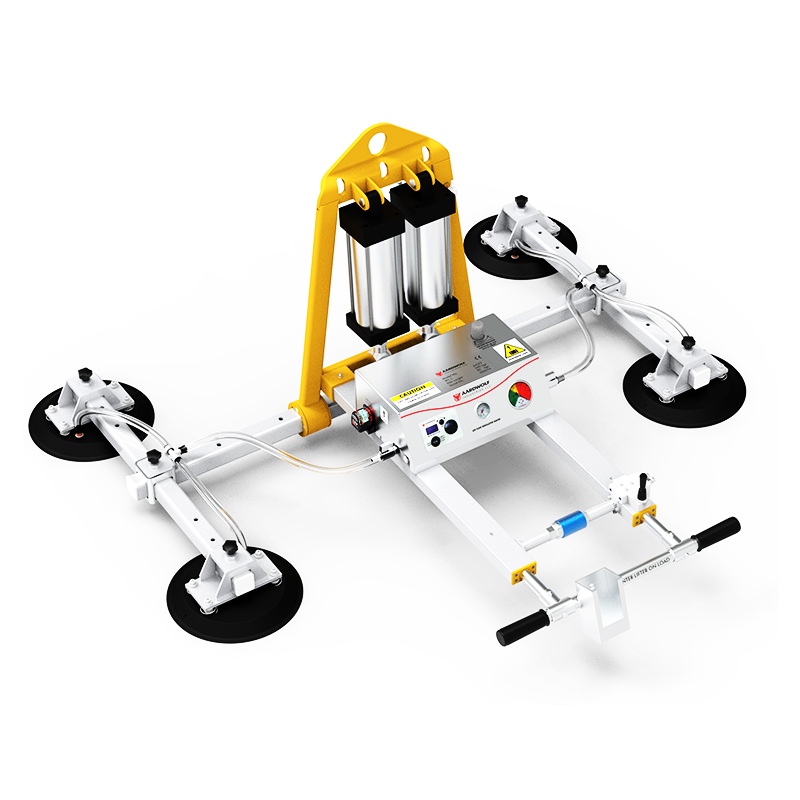

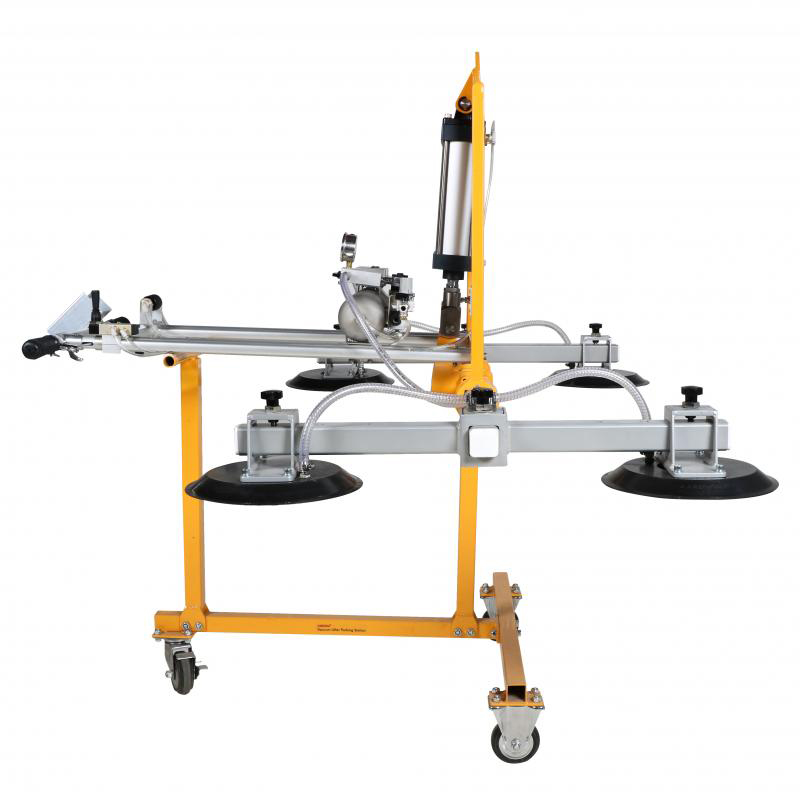

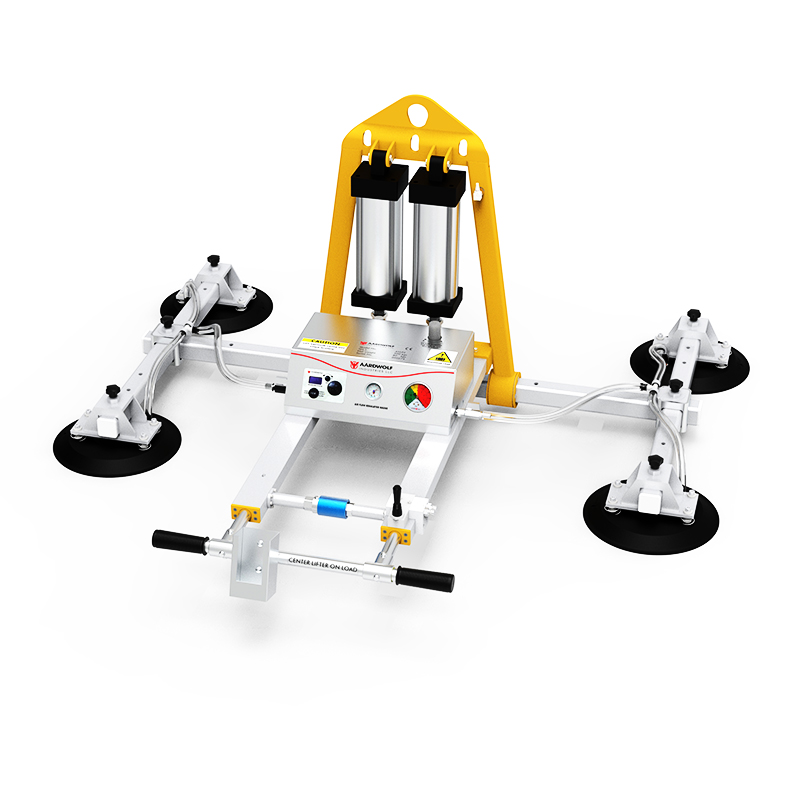

Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 500kg. It features a rugged construction with the added ability to lift and tilt the panel materials.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°.
- A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
- Automatic vacuum pumping if vacuum loss occurs.
- Acoustic and visual alarm system.
- Attach/release material with an ON/OFF slide valve.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 | – |
| Pad diameter | Seal to seal: 280 mm | 11″ |
| Working load limit | Vertical: 200 kg Horizontal: 400 kg |
441 lb 882 lb |
| Net weight | 79 kg | 174 lb |
| Packaging dimensions | L.1480xW.380xH.960 mm | 58.2″x15″x37.8″ |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
- Compressed air requirement
| Air consumption | 180 liters/minute |
| Supply air pressure | 5 bars (72 psi) |
