General

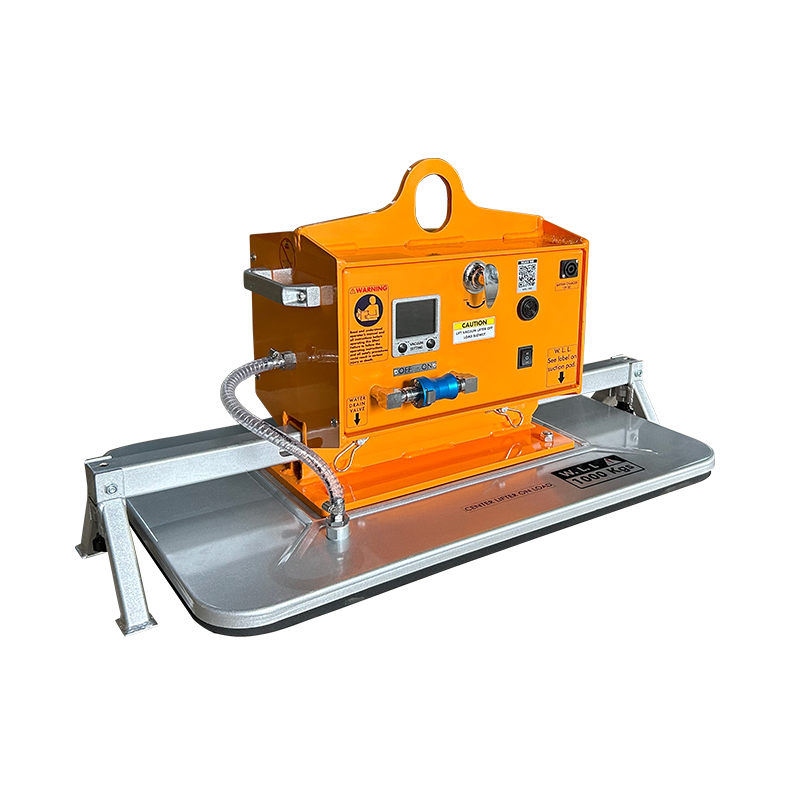

A powerful battery-operated vacuum lifting device for laying marble, granite slabs, concrete, and other related materials. Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.
Features
- Equipped with 2 battery-operated vacuum pumps.
- The operator has the choice of switching on 1 pump or switching on 2 pumps, depending on the porosity of the load.
- ON/OFF slide valve controls vacuum on and vacuum release.
- Audio/visual safety system: flashlight, audio alarm, vacuum gauge, vacuum storage tank.
- The automatic vacuum pumping system.
- Long working hours.
- Battery charge indicator.
Specifications
|
|
Metric |
Imperial |
|
Pad sizes |
800×500 mm |
31.5″x19.7″ |
|
W.L.L |
1000kg |
2204 lb |
|
Net weight |
95 kg |
209 lb |
|
Gross weight |
116 kg |
256 lb |
|
Packaging dimensions |
L.870xW.570xH.635 mm |
34.3″x22.4″x25″ |
- Battery information for the device
| Battery capacity | 12V-24A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 8 hours |
| Adapter | DC 12V-3A |
| Non-stop working time | 5 hours |
| 6-month warranty | – |
- Motor information
| Vacuum flow rate | 32.5 liters/minute |
| Vacuum pumps | 12V-4A |
