General

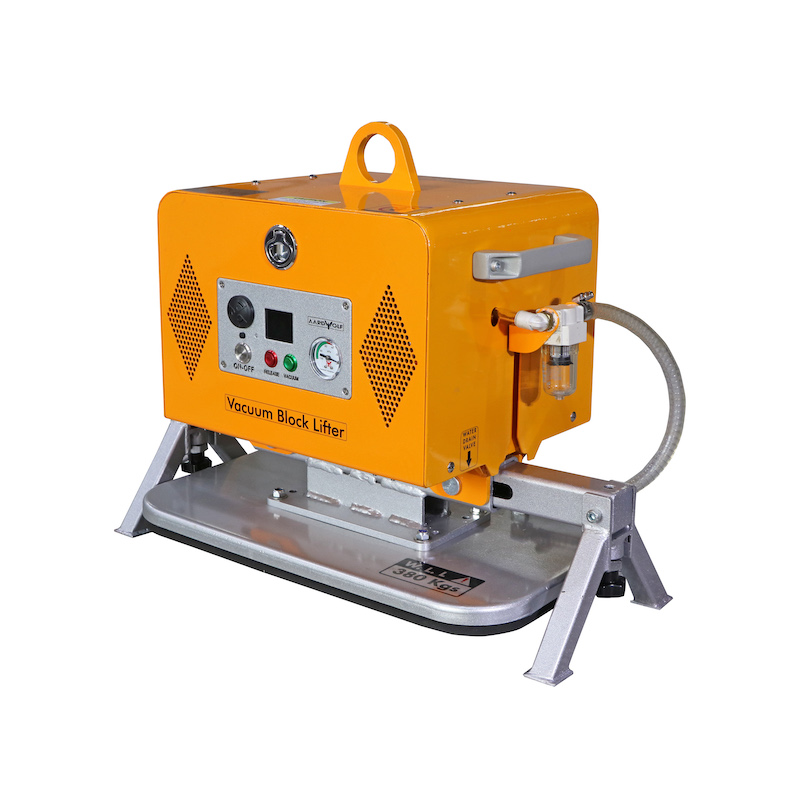

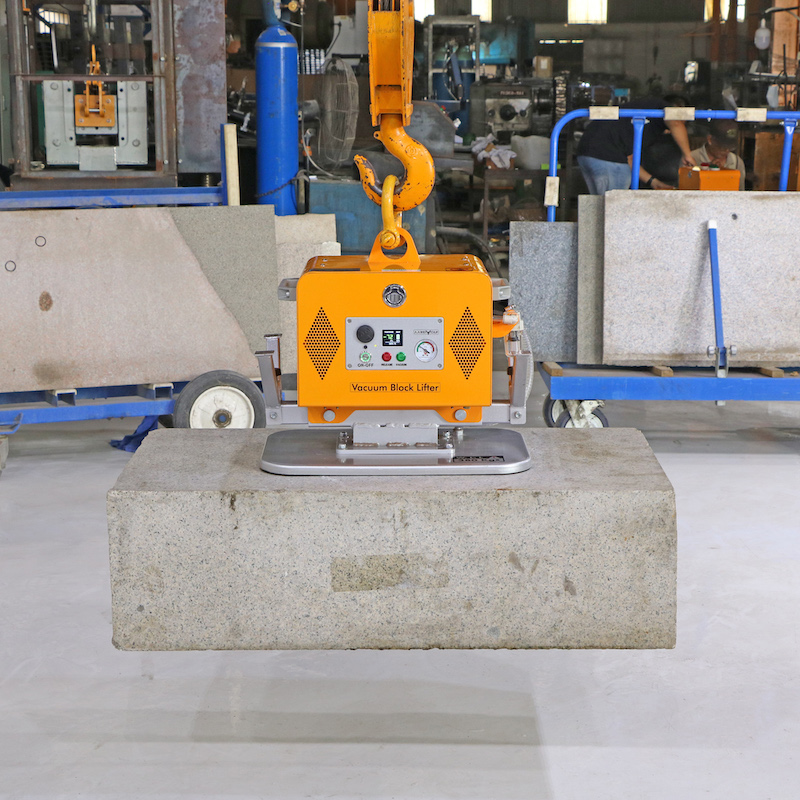

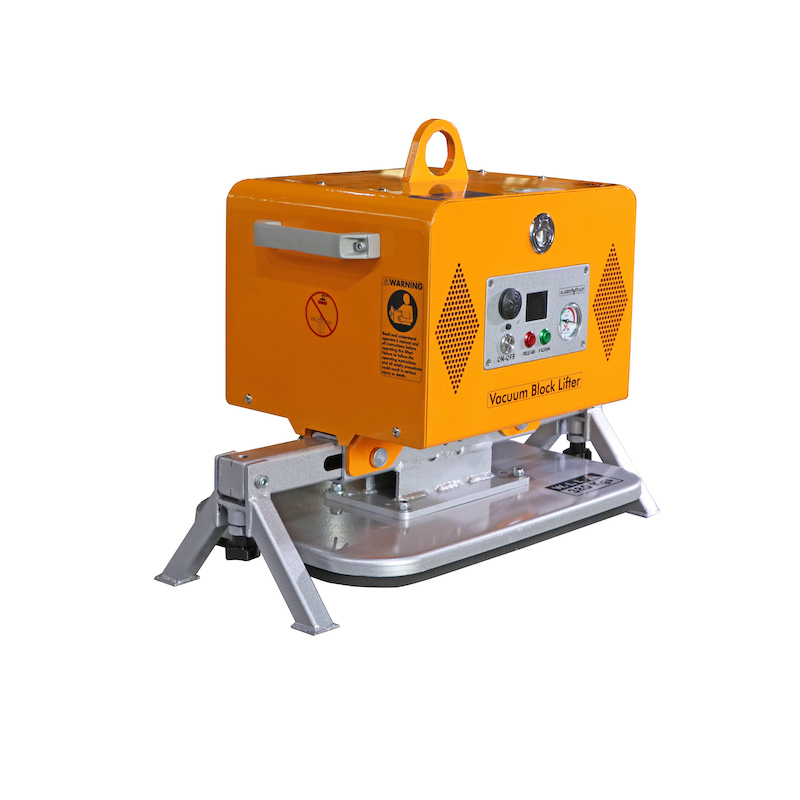

A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete, and similar. Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.
Strong and compact body with built-in mount for crane hook and the ability to quickly replace the vacuum suction pads.
Powered by a clip-in 24V battery with energy-saving system allows you to work without recharging throughout the day. Clip-in battery can be replaced in a matter of seconds.
Features
- Equipped with a battery-operated vacuum pump.

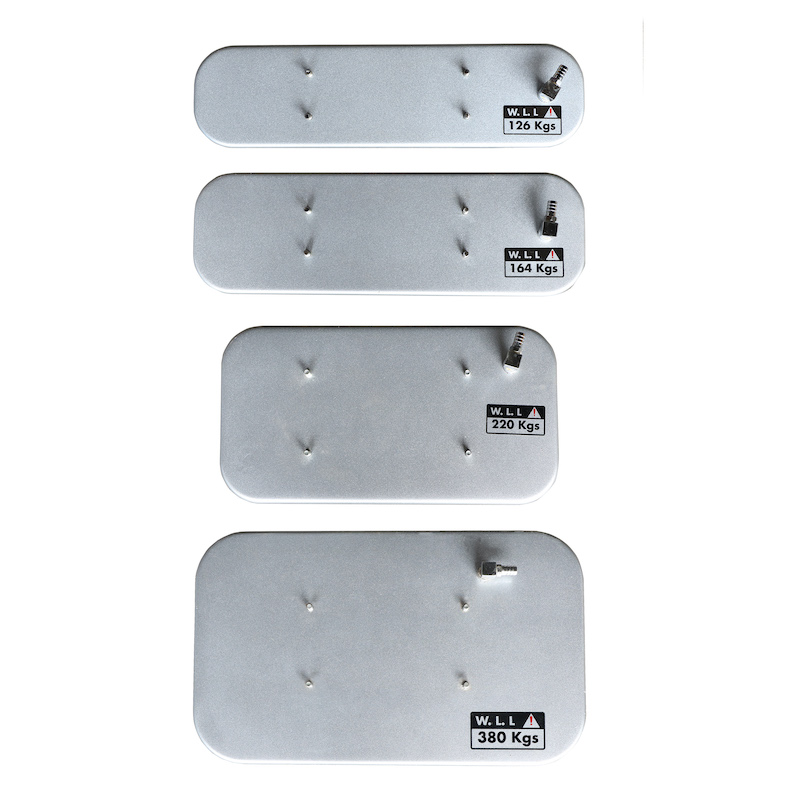

- Different suction pads are available for alternative uses.
- Audio/visual safety system: warning flashlight, vacuum gauge, large vacuum reserve tank.
- The automatic vacuum pumping system.
- Long working hours.
- Battery charge indicator.
- Manually operated valve for vacuum.
Specifications
|
Metric
|
Imperial
|
|
| Working load limit |
Pad sizes Kg 500×150 mm: 164 kg 500×300 mm: 380 kg |
16.5″x8.7″:485 lb 19.7″x4.9″:278 lb 16.5″x5.9″:362 lb 19.7″x11.8″:838 lb |
| Net weight | 39 kg | 86 lb |
| Gross weight | 55 kg | 121 lb |
| Packaging dimensions | L.585xW.385xH.530 mm | 23″x15″x20.9″ |
- Battery information for the device
| Battery capacity | 24V-12Ah |
| Non-stop working time | 2.5 hours |
- Motor information
| Vacuum flow rate | 70 liters/minute |
| Motor | 24V-4.5A |
Different dimension vacuum plates made on request.
