General:

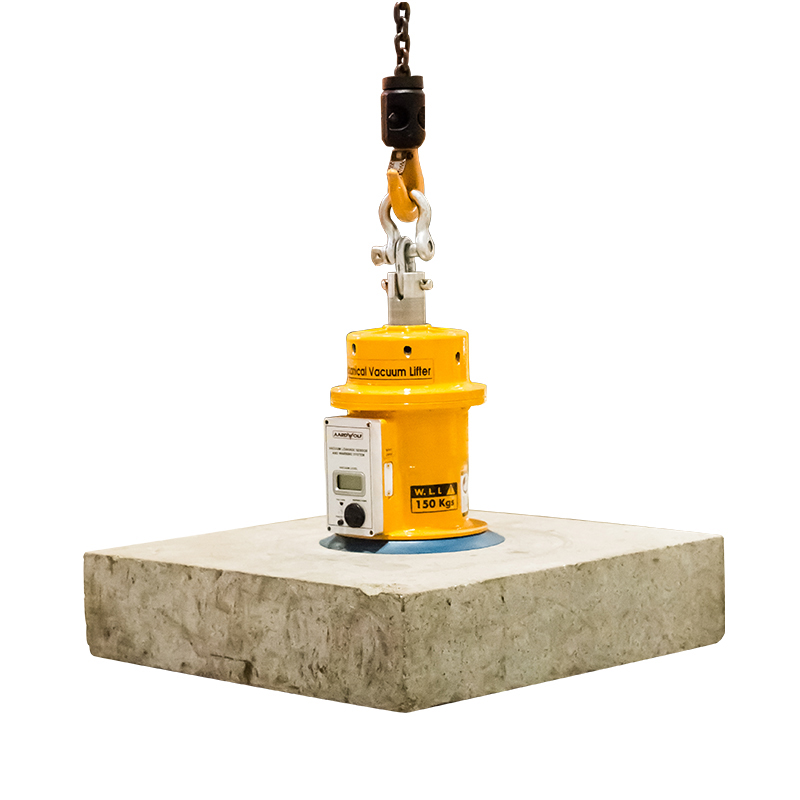

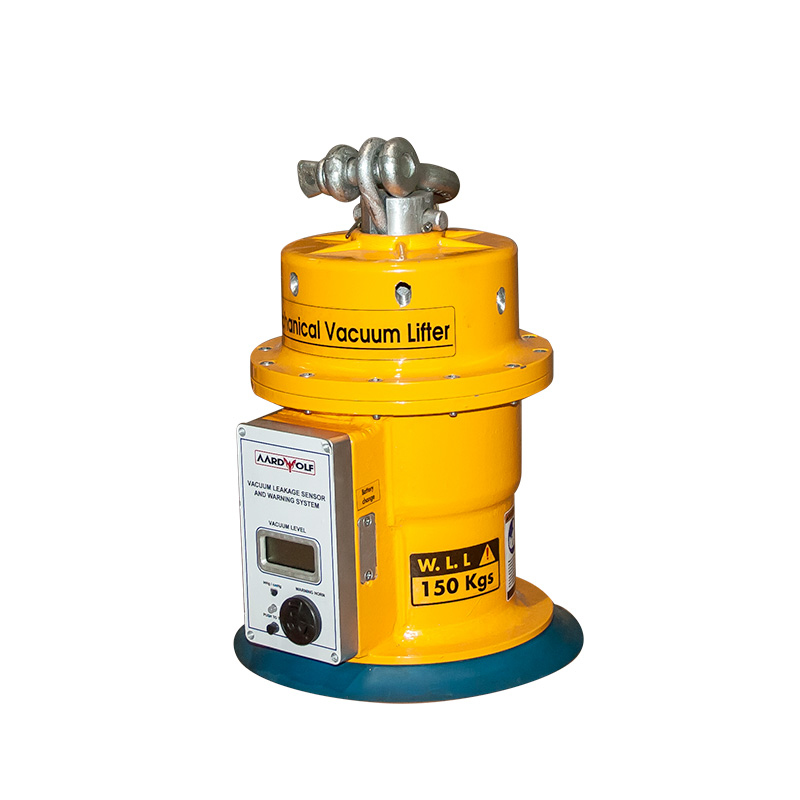

No power source required. Ideal for the horizontal handling of nonporous sheet and plate material such as, diamond sawn or polished granite, polished engineered stone, all types of metals, plastics and fibreglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and release cycle.
Features:
- Self-powered and self-cycling.
- Audio alarm system powered by a rechargeable 9v battery.
- Immediately ready for operation
- Low maintenance
- Aluminum construction. Light weight.
- A handle manually employed by two people for lifting operation
Specifications:
- Rated capacity: 150 Kgs (330 Lbs)
- Number of Pads: 1
- Diameter of pad: Overall 250 mm (Seal to seal 200 mm)
