General

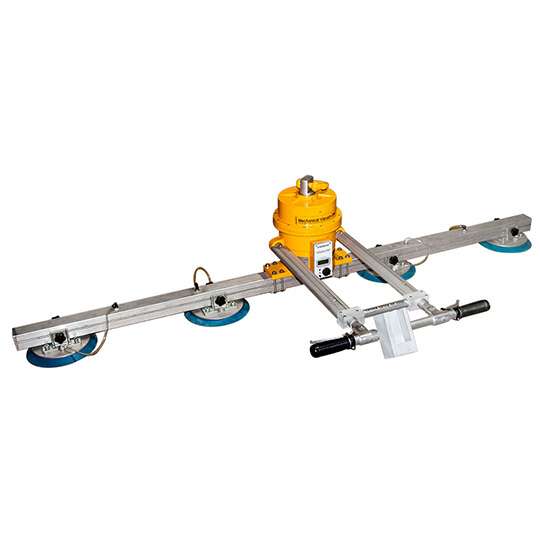

No power source is required. It is ideal for the horizontal handling of non-porous sheet and plate material such as diamond-sawn or polished granite, polished engineered stone, and all types of metals, plastics, and fiberglass. An automatic self-cycling valve at the piston’s bottom controls the vacuum grip and release cycle.
Features
- Self-powered and self-cycling.
- A non-rechargeable 9V battery powers the audio alarm system.
- Use the vacuum gauge for a visual warning of low vacuum.
- Telescopic front handle.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 Inline (pcs) | – |
| Pad diameter | Seal to seal: 190 mm | 7.5″ |
| Working load limit | 250 kg | 551 lb |
| Net weight | 47 kg | 104 lb |
| Gross weight | 73 kg | 161 lb |
| Packaging dimensions | L.1360xW.370xH.790 mm | 53.5″x14.6″x31″ |
- Battery information for the alarm system
| Power supply | 9V non-rechargeable |
| 6-month warranty | – |
Note: For materials with a rough surface texture, such as exfoliated granite, concrete, and textured metals, refer to our electric or air-powered vacuum lifters with foam rubber pads.
