General

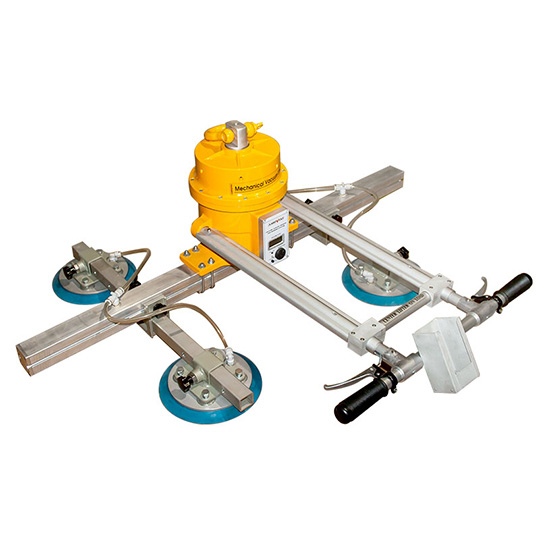

Energy-independent solution for the horizontal handling of non-porous sheet and plate materials. It has a telescopic front handlebar, adjustable beams, cross members, and vacuum pads. The battery-operated warning device ensures a high degree of work safety.
Features
- Self-powered and self-cycling.
- A non-rechargeable 9V battery powers the audio alarm system.
- Use the vacuum gauge for a visual warning of low vacuum.
- Adjustable front handle.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 4 pcs | – |
| Pad diameter | Seal to seal: 190 mm | 7.5″ |
| Working load limit | 250 kg | 551 lb |
| Net weight | 49 kg | 108 lb |
| Gross weight | 75 kg | 165 lb |
| Packaging dimensions | L.1360xW.370xH.790 mm | 53.5″x14.6″x31″ |
- Battery information for the alarm system
| Power supply | 9 V non-rechargeable |
