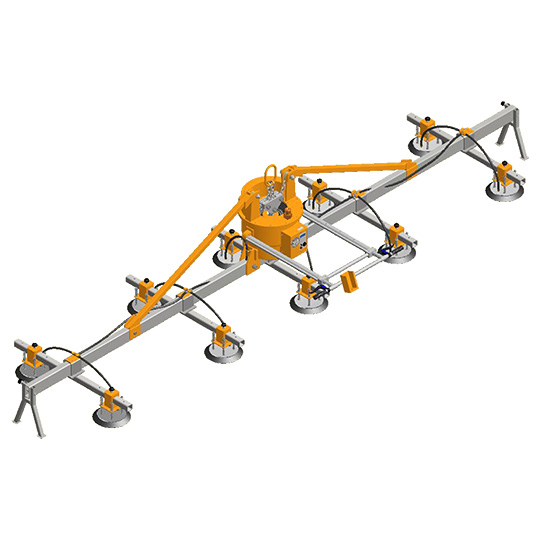

General
No power source is required. It is ideal for the horizontal handling of non-porous sheet and plate materials such as diamond-sawn or polished granite, polished engineered stone, and all types of metals, plastic, and fiberglass. It has a telescopic front handle bar and adjustable vacuum pads.
Features
- Self-powered and self-cycling.
- Simple to operate.
- Easy to maintain.
- Able to handle a variety of sheet sizes.
- Extremely safe. The load cannot be released until it is set down on the surface.
- Capable of 100% duty cycle, 24 hours/day operation.
- A non-rechargeable 9V battery powers the audio alarm system.
- Use the vacuum gauge for a visual warning of low vacuum.
- Telescopic front handle.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 10 | – |
| Pad diameter | Seal to seal:190 mm | 7.5″ |
| Working load limit | 1000 kg | 2204 lb |
| Net weight | 340 kg | 750 lb |
- Battery information for alarm system
| Power supply | 9V non-rechargeable |
Note: For materials with a rough surface texture, such as exfoliated granite, concrete, and textured metals, refer to our electric or air-powered vacuum lifters with foam rubber pads.
