General

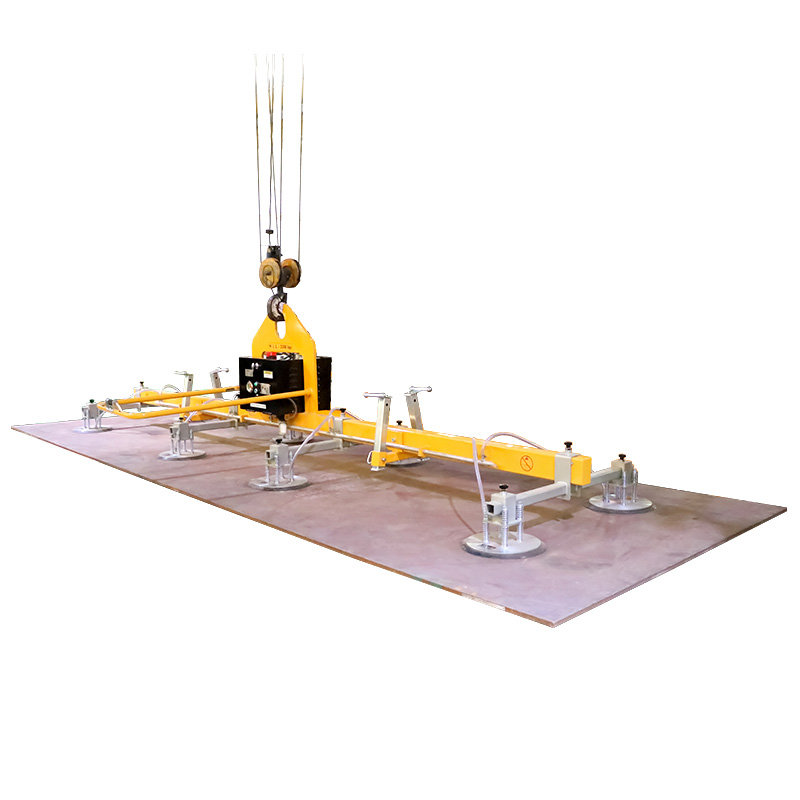

An electric pump motor drives the Aardwolf Electric Vacuum Lifter model AEVLP8-2000 and is suitable for handling large metal sheets. It features the ability to adjust the main beam and vacuum pads for a variety of sheet sizes. The lifter’s working load limit is up to 2000kg with material sizes up to 6000x1800mm.
Features
- Audio-visual safety system.
- When pressure is lost, the pressure switch control system automatically starts the vacuum pump.
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 8 pcs | – |
| Pad diameter | 350 mm | 14″ |
| Working load limit | 2000 kg | 4408 lb |
| Net weight | 370 kg | 816 lb |
| Packaging dimensions | 5000x1200x1300 mm | 196.8″x47.2″x51.2″ |
- Battery information for the alarm system
| Power supply | 3.7V Lipo battery |
| Battery capacity | 2000 mAh x 1 |
| Adapter | DC 5V-1A |
| Standby time | 720 hours |
| Charging cycle | 1000 times |
| Charging time | 2 hours |
| Non-stop working time | 7 hours |
| 6-month warranty | – |
- Motor information
| Input supply | AC 380-3Phase 50/60Hz |
| Vacuum flow rate | 7.6/8.7 m3/hour |
