General

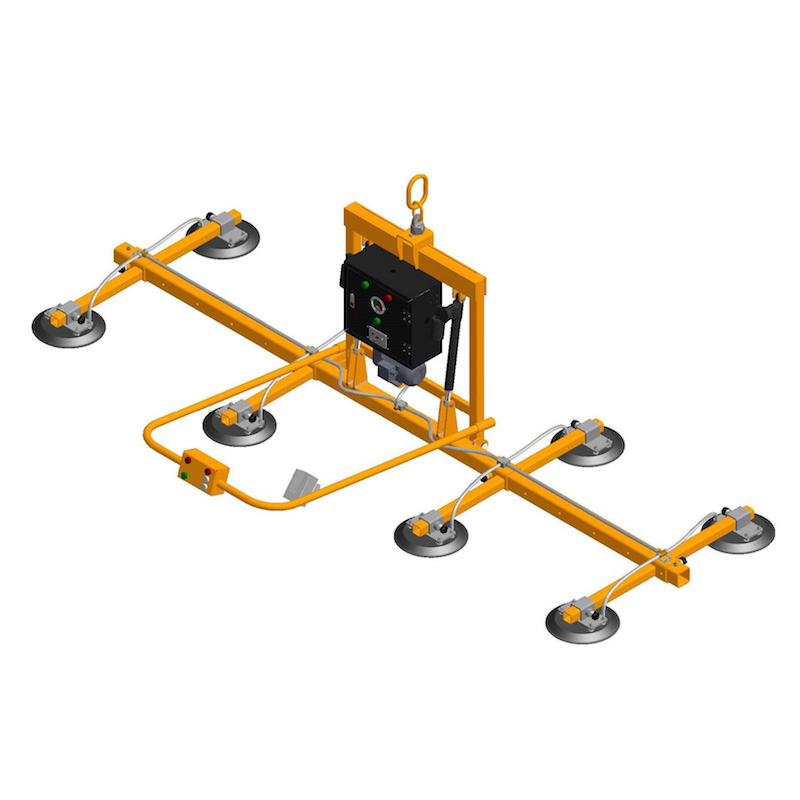

The Electric Vacuum Glass Lifter is designed for lifting and moving long glass sheets. With a sturdy and durable structure, this lifter is ideal for working at large construction sites. The flexible crossbar and stringer beams can also be adjusted easily, giving greater flexibility on-site. With outstanding features supporting glass materials handling, this lifter is the solution for safety and efficiency seekers.
Feature
- Handling of long glass sheets.
- Equipped with an electric cabinet-operated.
- Audio and visual alarm system.
- Vertical-horizontal tilting from 0 to 90°.
- Adjustable vacuum pads based on glass sizes.
- Automatic vacuum pumping once the vacuum loss occurred.
- Attach and release glass sheets by ON/OFF slide valve.
- Safe and reliable.
Specifications
| Number of pads | 8 |
| Linear activator | 90 degrees |
| Metric |
Imperial
|
|
| Pad diameter | 300 mm | 11.8″ |
| Maximum length-width of the glass sheet | 3600×1800 mm | 141.7″x71″ |
| Minimum length-width of the glass sheet | 2400×800 mm | 94.5″x31.5″ |
| Adjustable the crossbar on both sides | 400 mm | 15.7″ |
| Adjustable stringer beams on both sides | 250 mm | 10″ |
| Working load limit | Vertical: 400 kg Horizontal: 800 kg |
882 lb 1763 lb |
| Net weight | 203 kg | 448 lb |
| Gross weight | 293 kg | 646 lb |
| Packaging dimensions | 3520x485x1270 mm | 128″x19″x50″ |
| Battery information for the alarm system | Power supply: 3.7V Lipo battery Battery capacity: 2000 mAh x 1 Adapter: DC 5V-1A Standby time: 720 hours Charging cycle: 1000 times Charging time: 2 hours Non-stop working time: 7 hours 6-month warranty |
| Motor Information | AC 380V-3phase 50/60Hz Vacuum flow rate: 4.1/4.7 m3/hour |
