General

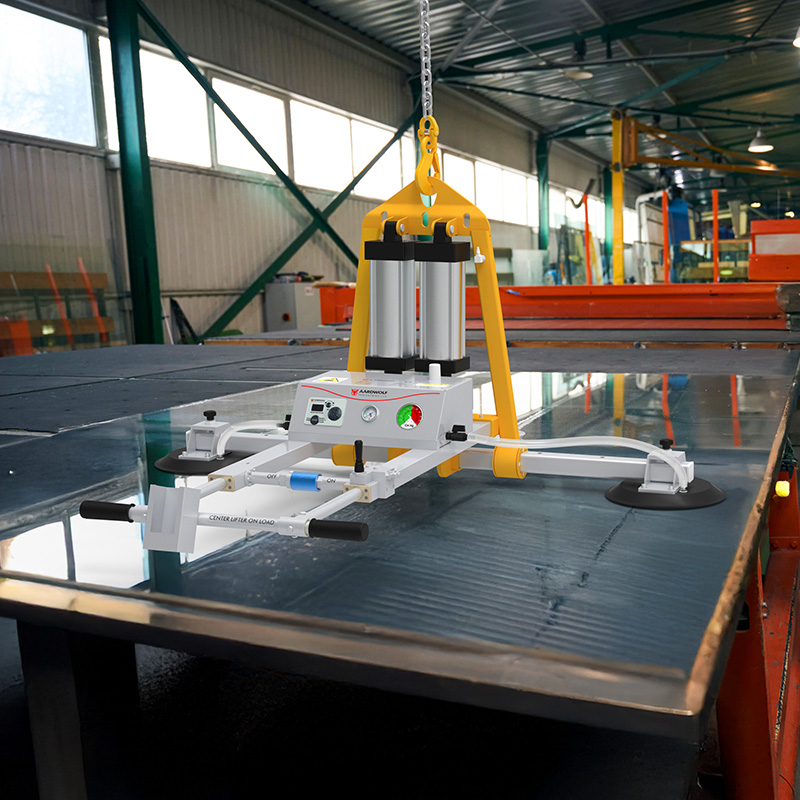

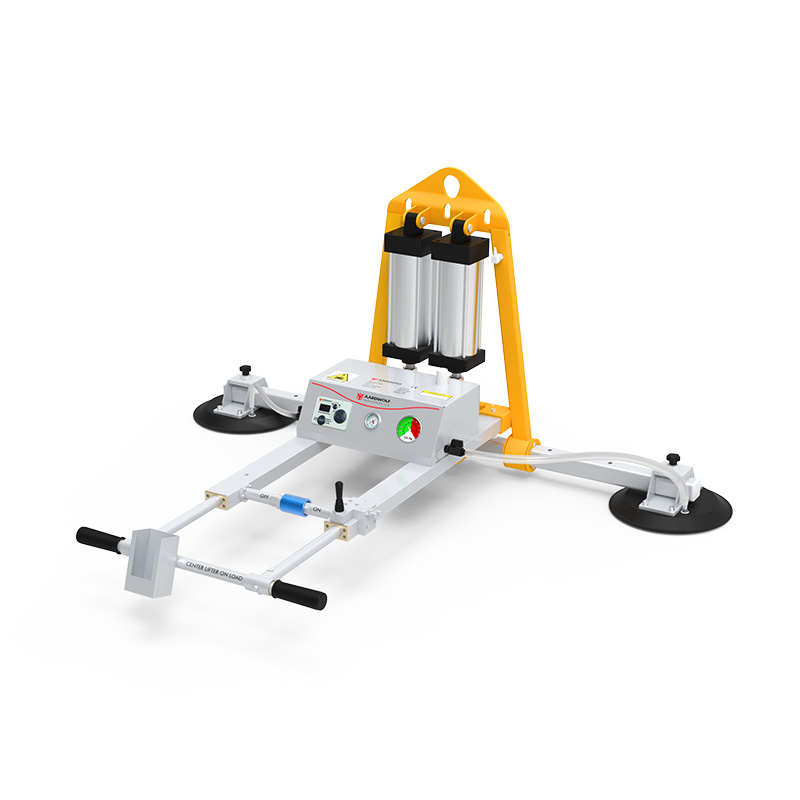

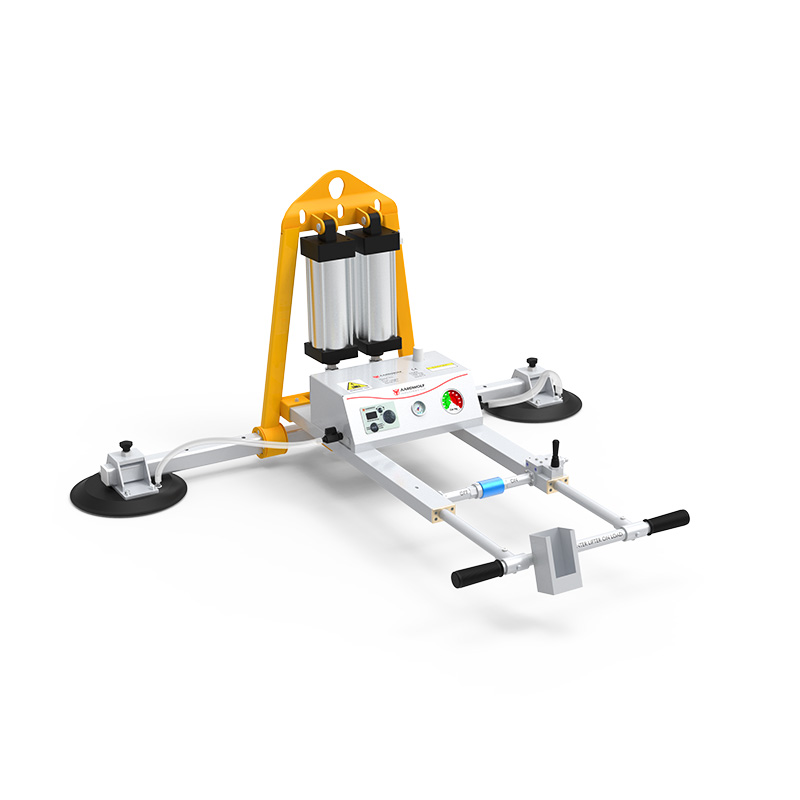

The Aardwolf Vacuum Glass Lifter is a pneumatically powered vacuum glass lifter designed to handle glass panels, even those with rough surfaces, with a lifting capacity of up to 200 kg (440 lbs). Featuring a rugged build, it offers vertical-horizontal tilting from 0 to 90 degrees, making it ideal for secure lifting in various applications.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90°
- Automatic vacuum pumping if vacuum loss occurs
- Audio/visual warning system
- Attach/release materials using the ON/OFF slide valve
Specifications
|
Metric
|
Imperial
|
|
| Number of pad | 2 | – |
| Pad diameter | 300 mm | 11.8″ |
| Working load limit | 200 kg | 441 lbs |
| Net weight | 64 kg | 141 lbs |
| Packaging dimensions | 1480 430 960 mm |
58.3″ 16.9″ 37.8“ |
- Battery information for the alarm system
|
Power supply |
3.7V Lipo battery |
|
Battery capacity |
2000 mAh x 1 |
|
Standby time |
720 hours |
|
Charging cycle |
1000 times |
|
Charging time |
2 hours |
|
Non-stop working time |
7 hours |
- Compressed air requirement
|
Air consumption |
180 liters/minute |
|
Supply air pressure |
5 bars (72 psi) |
