General description of the Handy Vacuum Lifter

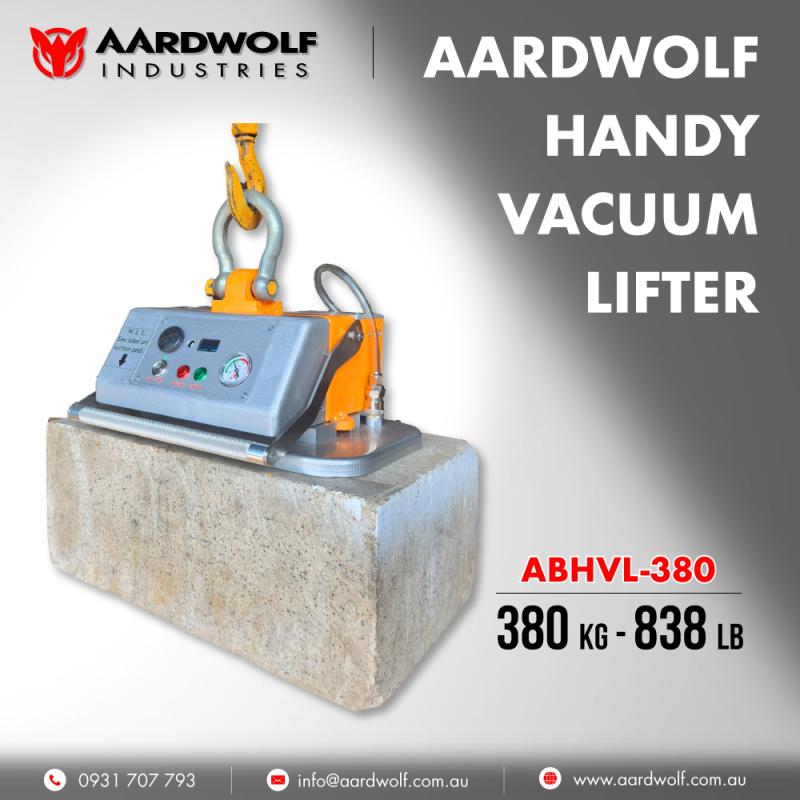

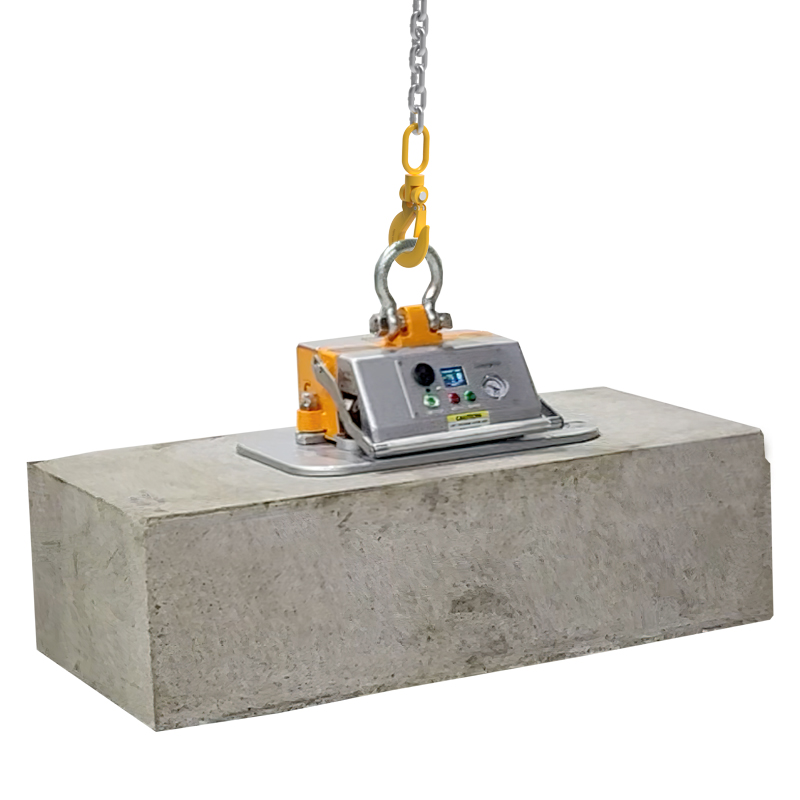

The Aardwolf Battery Handy Vacuum Lifter (ABHVL-380) streamlines material handling with its high-performance battery-powered vacuum system, saving time and money. Constructed to be compact and robust, this stone vacuum lifter can handle loads up to 380 kg and offers multiple pad sizes—ideal for moving heavy objects such as concrete blocks and stone slabs, whether smooth or rough. Equipped with a clip-in battery featuring an energy-saving system, it delivers all-day operation without recharging, and the battery can be replaced in seconds. Additionally, it easily integrates with a crane or hoist hook, offering a flexible solution for varied site conditions—making it an indispensable tool in modern material handling.
Key features of the Handy Vacuum Lifter
Work Load Limit
Capable of lifting up to 380 kg (838 lb) with the appropriate vacuum pad size, making it a reliable granite vacuum lifter for heavy-duty jobs.
Integrated Battery Vacuum System
Generates vacuum via a high-performance pump, eliminating the need for external pneumatic hoses.

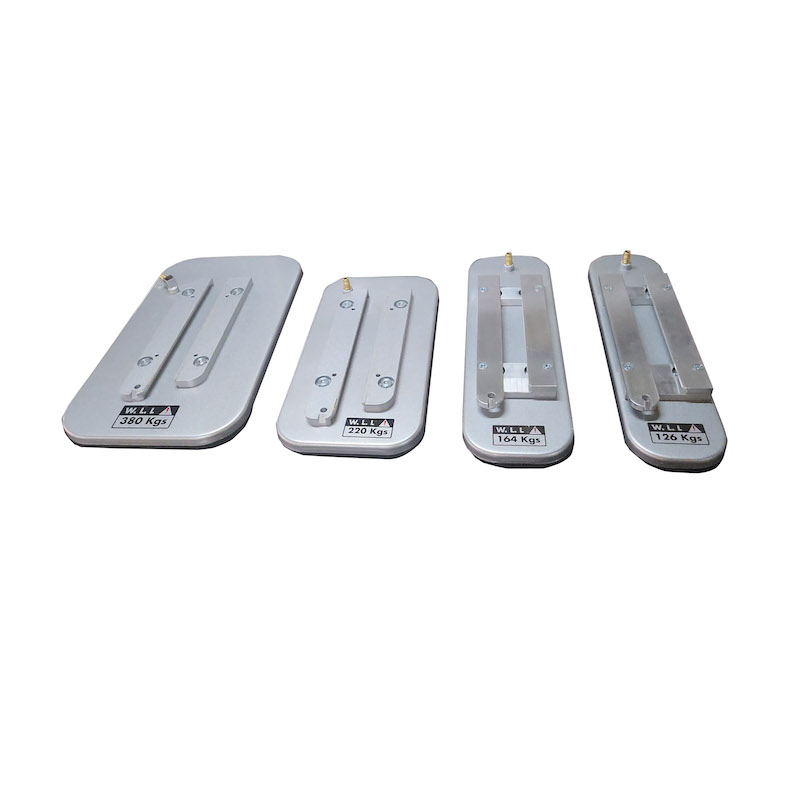

Versatile Pads
Available in four different sizes, each designed to meet specific working load limits for various applications.
Easy Pad Changes
Engineered for quick assembly and hassle-free switching between pad sizes.
One-Press Operation
Simplifies the vacuum lifting and releasing process with a single press, ensuring smooth vertical handling.
Visual Monitor and Alarm System
Provides real-time feedback to maintain optimal vacuum levels and ensure safe operation.
Battery Backup
Offers uninterrupted functionality, even during power fluctuations.
Specifications
|
|
Metric |
Imperial |
|
Pad sizes and W.L.L |
500 x 300mm: 380kg 420 x 220mm: 220kg 500 x 150mm: 164kg 500 x 125mm: 126kg |
19.7“ x 11.8“: 838lbs 16.5“ x 8.66“: 485lbs 19.7“ x 5.9“: 362lbs 19.7“ x 4.9“: 278lbs |
|
Packing dimensions |
L.590 |
23.2“ |
|
Net weight |
18 kg |
39.6 lbs |
|
Gross weight |
34 kg |
74.9 lbs |
Why Choose the Aardwolf Handy Vacuum Lifter?
Enhanced Safety
Equipped with a visual monitor and alarm system to maintain optimal vacuum levels, ensuring a secure lift and reducing risks on the job site.
Versatile Applications
Multiple pad sizes and robust construction enable it to handle various materials—such as concrete blocks and stone slabs—with ease, whether they have smooth or rough surfaces.
Reliable Battery Backup
Designed with an energy-saving system and clip-in battery, offering uninterrupted operation throughout the day. The quick-swap feature allows the battery to be replaced in seconds, minimizing downtime.
Warranty Coverage
Backed by Aardwolf’s quality assurance, providing peace of mind and dependable support for your investment.
