General

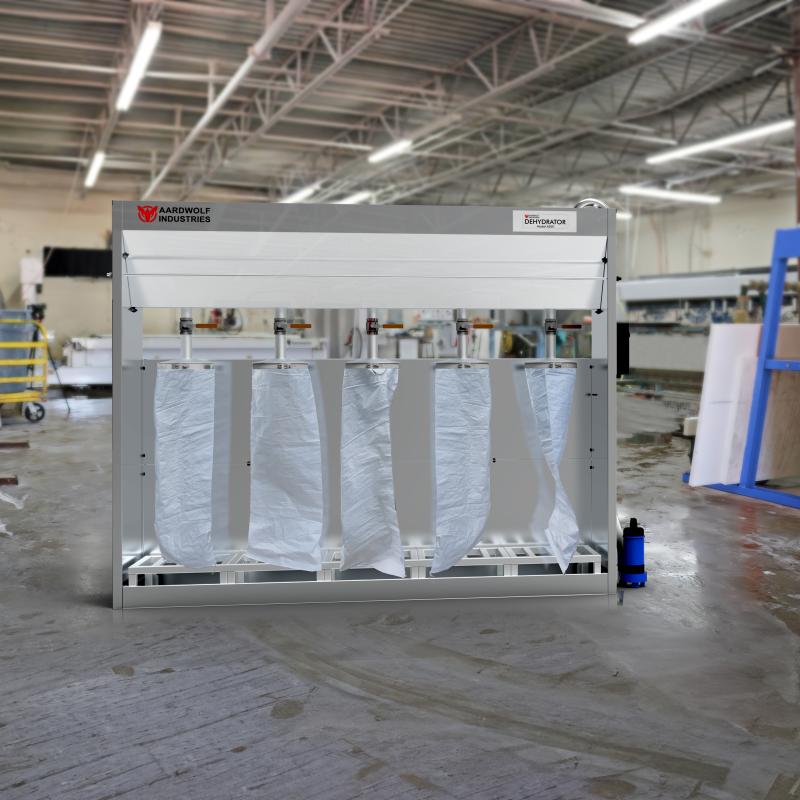

The Sludge Dehydrator Filter is a robust and efficient solution for handling abrasive mud generated during the machining and finishing of marble, granite, and other stones. This system offers a streamlined and cost-effective approach to separating and dewatering sludges and slurries. Built from high-quality stainless steel, the Sludge Dehydrator Filter is designed to ensure durability and minimal maintenance, providing businesses with a reliable and low-maintenance option for handling waste from stone processing.
Features
Fast Dehydration: Efficiently collects and traps abrasive mud from stone processing.
Cost-Effective: One-step solution for separating and dewatering sludges.
Durable: Stainless steel construction ensures long-lasting performance.
Low Maintenance: No moving parts for minimal upkeep.
Easy Operation: Simple design with four key components for hassle-free use.
Specifications
|
|
Metric |
Imperial |
|
Dimensions |
(227cm x 222cm x 60cm) |
89.4” x 86.6” x 23.6” |
|
Weight |
280kg |
617 lbs |
|
Power requirements (USA) |
110v 50Hz (USA) |
220v 50Hz (Aus) |
|
Weekly Output Capacity of Dry Mud |
22 ft³ |
|
|
Mud Holding Tank Capacity |
550 liters |
145 Gallons |
|
Sump pump |
6E-CIA-SFS 189 lpm / or equal |
|
|
Float Switch |
Mechanical |
|
|
Valves |
2 inches BSP Brass Nickel Plated |
Package includes
• 4 plastic curtains
• 2 stainless steel curtain rods
• 1 industrial water hose
• 3 industrial hose clamps

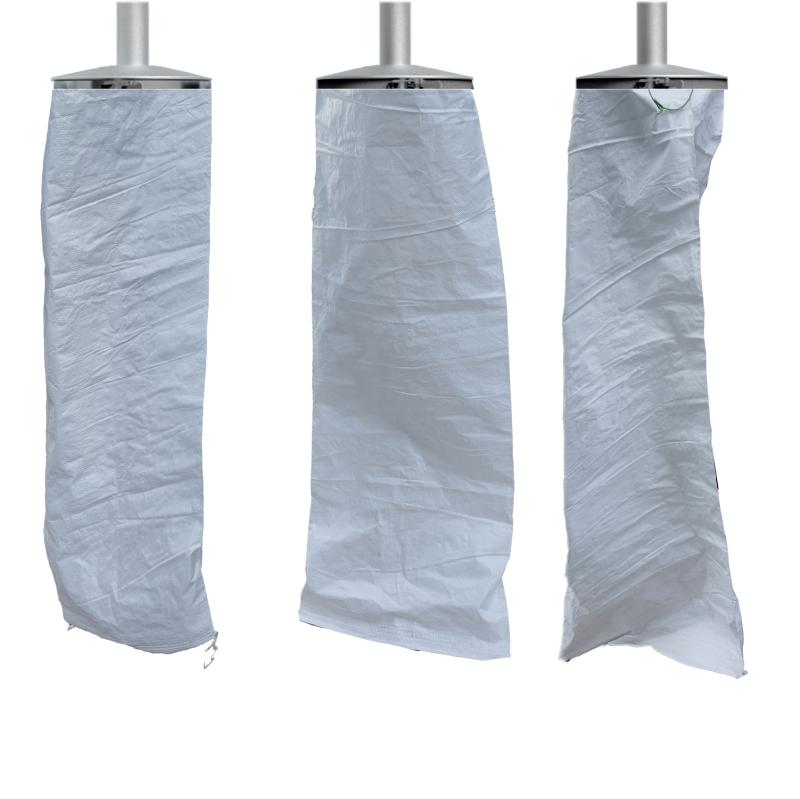

• 15 polypropylene filtration bags
• 1 pit cleaning tool/ air stick
