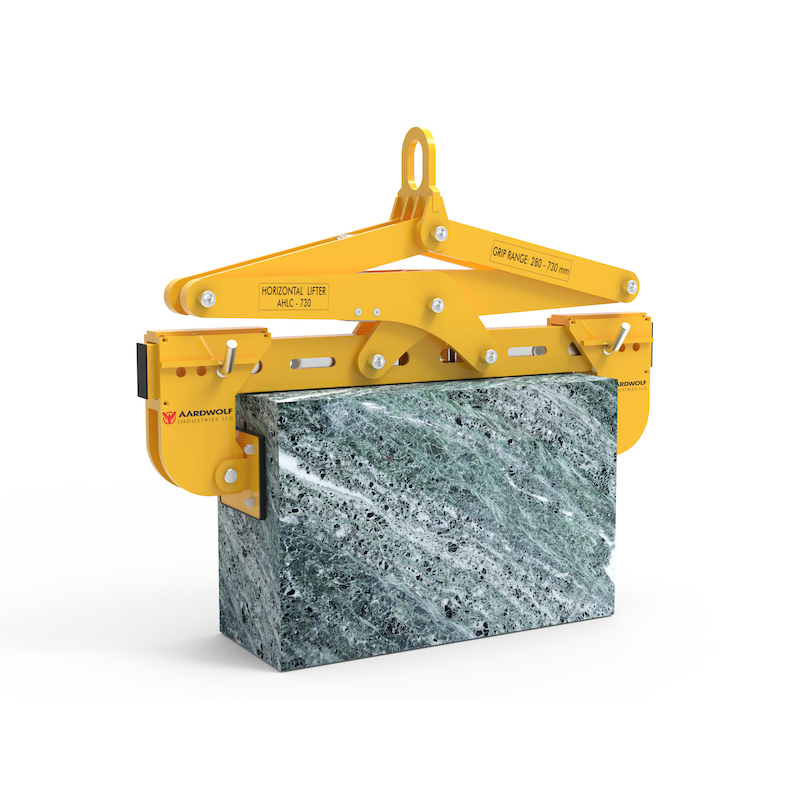

General Description of the Horizontal Stone Lifting Clamp
The Horizontal Stone Lifting Clamp (AHLC-730) is designed for the efficient handling of concrete blocks and natural stone. Engineered for use with cranes or forklift booms, this block clamp ensures maximum versatility in various operational environments.
With its automatic gravity-powered mechanism, the clamp effortlessly engages and releases effortlessly, streamlining workflows by automatically gripping loads during lifting and releasing them on set-down.
This horizontal lifting clamp features high-friction, replaceable polyurethane gripping pads which protect load surfaces while ensuring a secure hold. Additionally, an optional rotating pad and limit stop upgrade enhances precision and efficiency, making this block clamp an ideal solution for demanding lifting applications.
Whether you need block lifts for construction projects or require precision positioning, the AHLC-730 provides exceptional reliability, efficiency, and safety.
Key Features of the Horizontal Stone Lifting Clamp
- Adjustable Grip Range – Accommodates various block sizes for versatile lifting.
- High Load Capacity – Designed for lifting heavy slabs and blocks with ease.

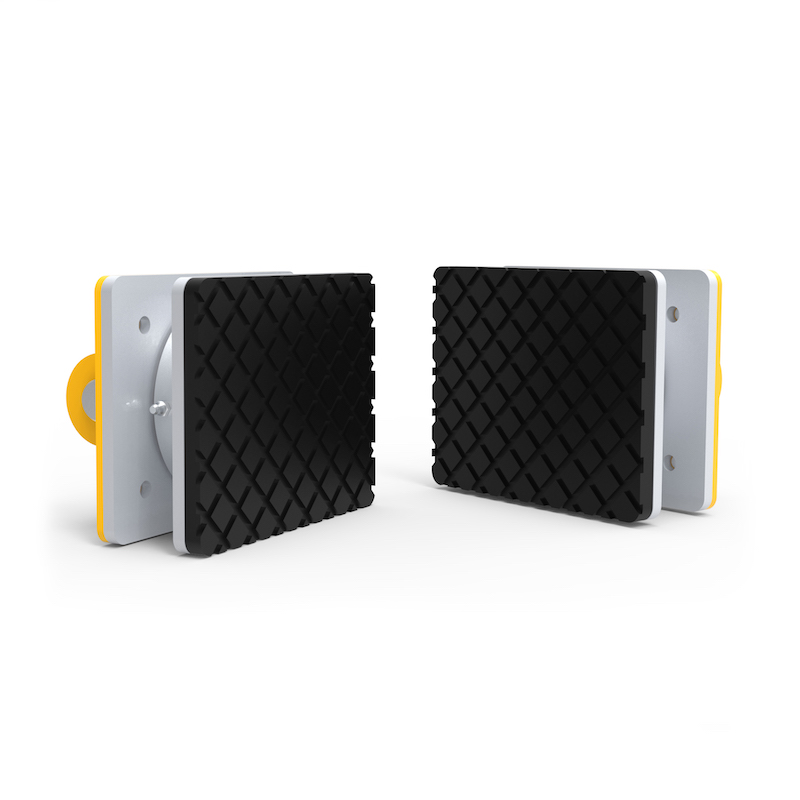

- Durable Polyurethane Pads – Replaceable, high-friction pads provide superior grip and surface protection.
- Automatic Lock & Release – Gravity-powered jaws engage and release seamlessly to enhance efficiency.
- Lifting Eye for Crane Hook Integration – Ensures secure attachment to hoisting equipment.

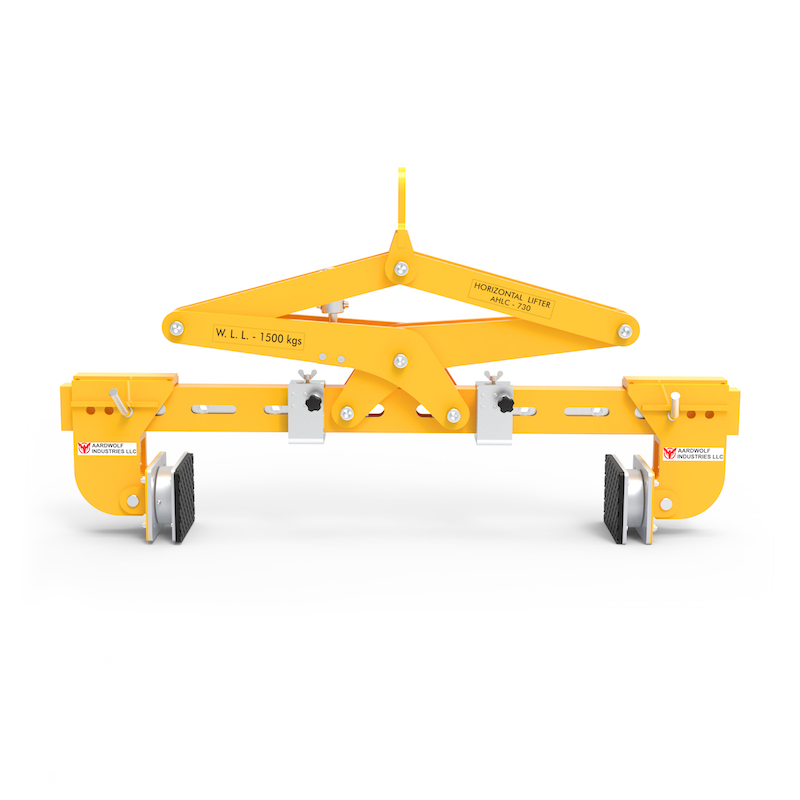

- Optional Rotating Pad & Limit Stop – Enhances maneuverability for precise positioning and controlled rotation.

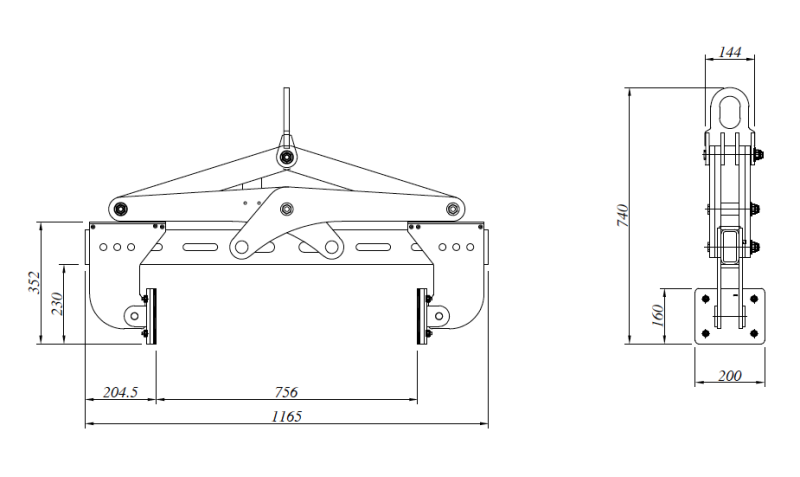

Specifications of the AHLC-730
|
Metric
|
Imperial
|
|
| Grip range | 280 – 730 mm | 11″ – 28″ |
| Working load limit | 1500 kg | 3307 lbs |
| Net weight | 112 kg | 247 lbs |
| Gross weight | 123 kg | 271 lbs |
| Packaging dimensions | L.1410 W.530 H.330 mm |
55.5″ 20.9″ 13″ |
Why Choose the Horizontal Stone Lifting Clamp?
- Optimized for Efficiency – The auto-lock and release system reduces manual labor, while rotating pads allow smooth lifting block.
- Enhanced Safety Standards – Built to meet Machinery Directive 2006/42/EC and Australian Standard 4991-2004, ensuring compliance with industry safety regulations.
- Long-Lasting Durability – Built from high-quality materials with replaceable rubber pads, ensuring longevity and consistent performance.
- Compact & Space-Saving – Ideal for job sites, warehouses, and confined spaces, ensuring maximum efficiency.
- Versatile Applications – Designed for lifting blocks, stone slabs, and concrete elements in construction, stone processing, and industrial lifting.
- Backed by Warranty & Support – Comes with a 12-month manufacturer’s warranty, ensuring protection against defects and providing access to Aardwolf’s global service centers for maintenance and support.
