General

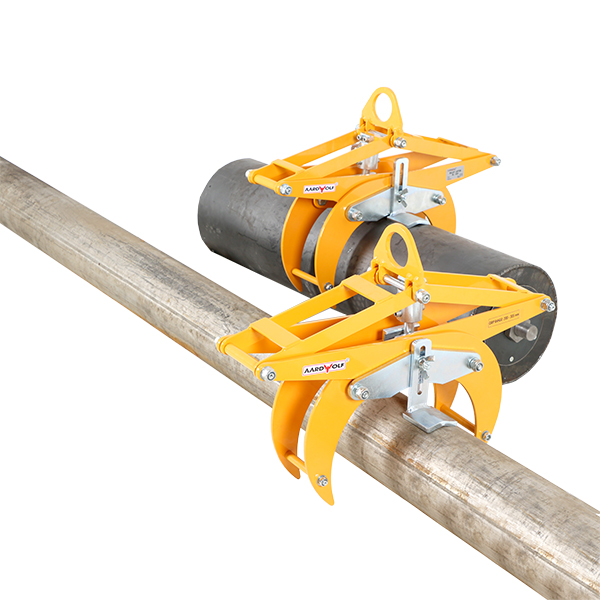

The Round Bar Lifter RBL305 is designed to clamp and lift steel pipes and tubes. It is fast, efficient, flexible, and fully automatic; the Round Bar Lifter is ideal for factory work or construction sites. It is equipped with an auto-locking latch mechanism and no electric or hydraulic power supply. The Round Bar Lifter can be used with an overhead crane or forklift boom to pick and place materials.
Features
- Handling long steel pipes and tubes, especially for steel pipe assembly system.
- Made from durable steel material.
- Sturdy and safe construction.
Specifications
|
Metric
|
Imperial
|
|
| Grip diameter range | 200 – 305 mm | 8″ – 12″ |
| Working load limit | 320 kg | 706 lb |
| Net weight | 26 kg | 57 lb |
| Gross weight | 29 kg | 64 lb |
| Packaging dimensions | L.740xW.245xH.580 mm | 29.1″x9.6″x22.8″ |
