General

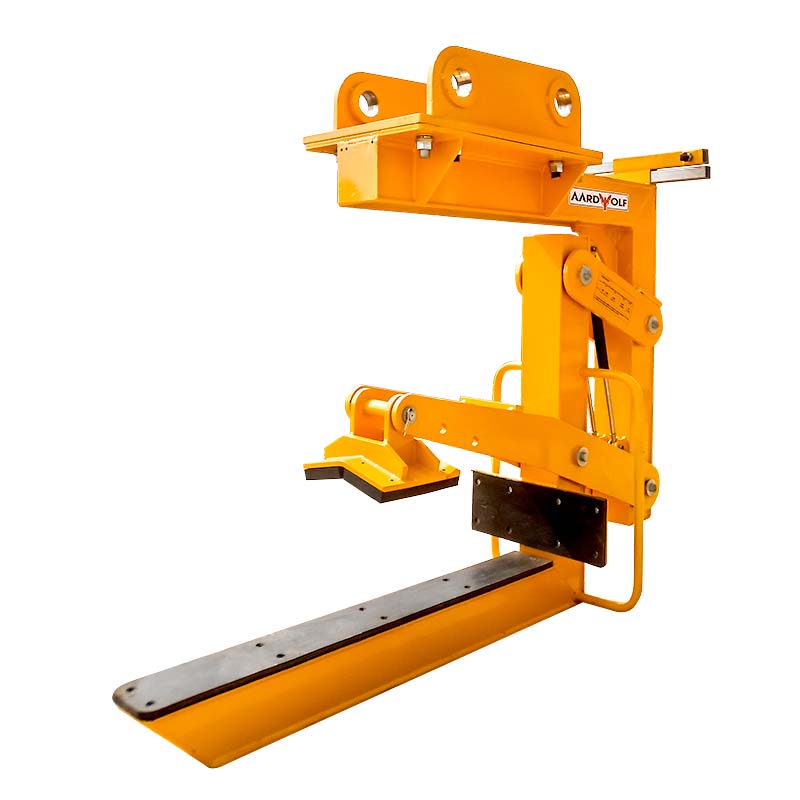

Faster, smarter, more efficient, flexible, and fully automatic features enable the Pipe Handling Attachment to lift concrete pipes safely. No hydraulic power supply, slings, chains, or manual assistants are needed during lifting. The narrow profile allows the easy installation of concrete pipes into tight trenches.
The pipes are tightly held through the clamping mechanism to enhance accurate material placement. Users are not required to pick up and put down the pipes during lifting. Thus, this device works in an absolutely secure and safe manner.
Features
- Auto locks and unlocks a load.
- Durable powder-coated finish.

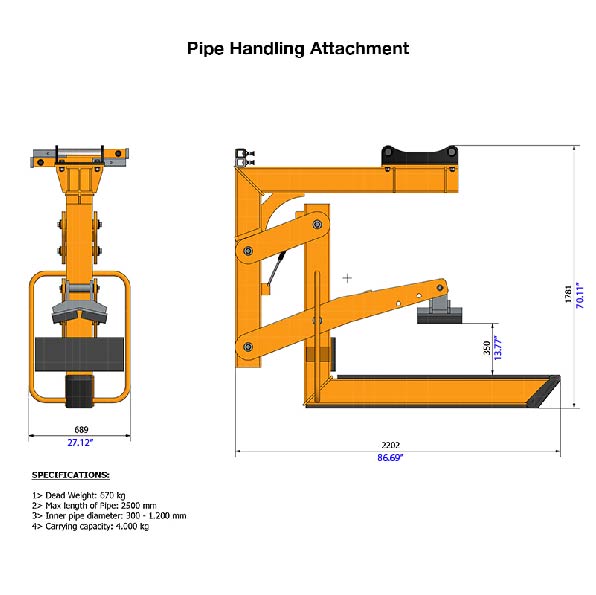

Specifications
|
Metric
|
Imperial
|
|
| Grip range | 300- 1200 mm | 12″ – 47″ |
| Pipe length | 2500 mm | 98.4 inch |
| Working load limit | 4000 kg | 8818 lb |
| Net weight | 760 kg | 1675 lb |
| Gross weight | 920 kg | 2028 lb |
| Packaging dimensions | L.2000xW.830xH.2200 mm | 78.7″x32.7″x86.6″ |
