General

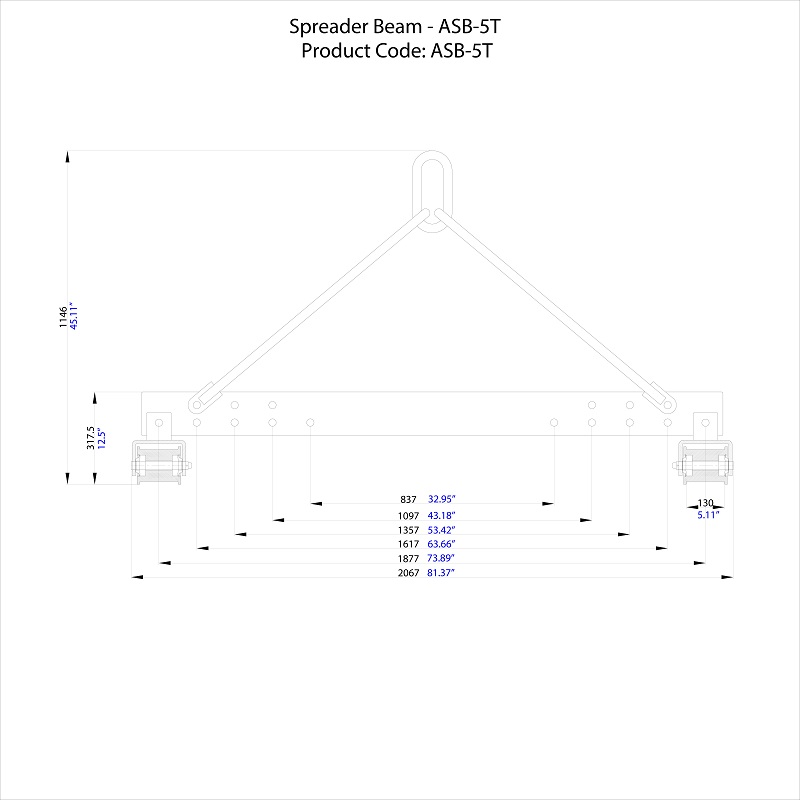

Specifically designed for the stone and glass industries. The Spreader Beam, combined with endless slings, is an invaluable piece of equipment where the stone/glass must be rolled over. The slings are suspended on crowned aluminum rollers. This makes turning the load in the sling easier. The rollers will handle up to 90mm wide slings. The swivel hooks can be used in place of rollers. The overall width is 2000mm.
Features
- Adjustable lifting points.
- Handle both wide and unbalanced loads.
- It includes swivel hooks.
Specifications
|
Metric
|
Imperial
|
|
| Working load limit | 5000 kg | 11023 lb |
| Net weight | 104.7 kg | 231 lb |
| Gross weight | 105 kg | 232 lb |
| Packaging dimensions | L.2040xW.150xH.350 mm | 80.3″x5.9″x13.8″ |
