General

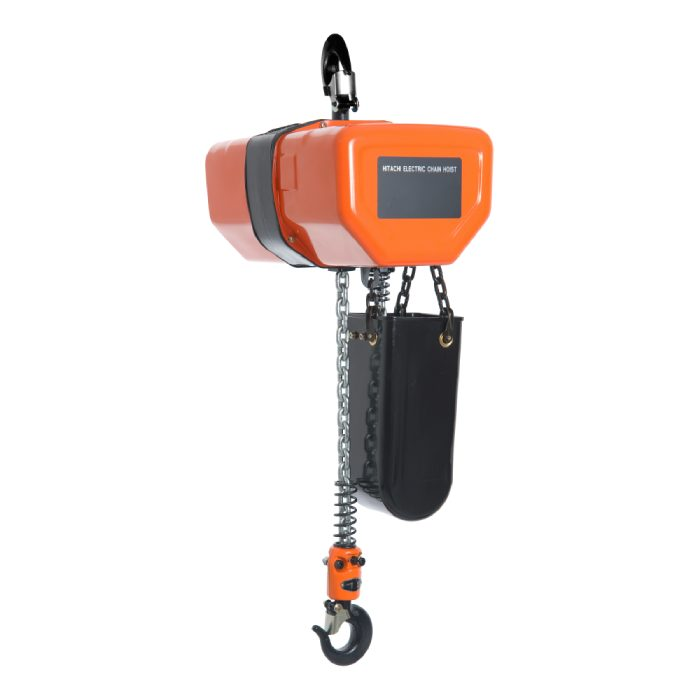

The Hitachi 1S, 1ST Electric Chain Hoist is a 1-ton, high-performance lifting solution, offering smooth operation at 4.6 m/min with a 3.6m lifting height. Its durable load chain ensures reliable and safe handling across various applications.
Ideal for factories, construction, boat lifting, and entertainment industries, this hoist supports efficient material handling. Built for durability, it is weather, wind, and temperature resistant, making it perfect for demanding environments where hygiene and precision matter.
Features
- Fully rotatable load hook with a safety latch.
- A patented electromechanical load limiter prevents overloading.
- Helical gearing ensures smooth and quiet operation.
- IP54-rated sealing for dust and water resistance.
- Class E insulation for enhanced electrical safety.
- 24V control voltage for safe operation.
- Lightweight plastic load chain container.
- CE & UKCA certified with an official certificate.

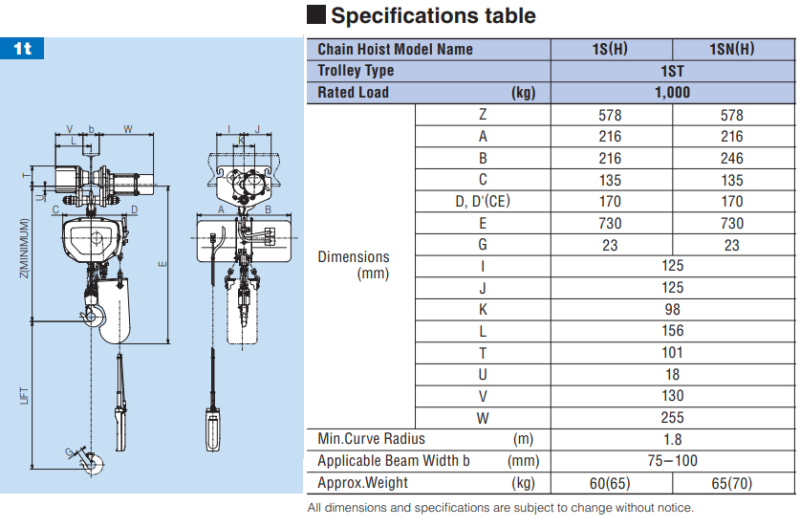

Specifications
|
Model name |
1S, 1ST |
|
|
Load Capacity |
1000 kg |
2204.62 pounds |
|
Lifting height |
3.6m |
11.81 feet |
|
Lifting speed |
4.6m/min |
5.09 feet per minute |
|
Trolley speed |
10.5 m/min |
34.45 feet per minute |
|
Load chain |
7.1x20.2mm |
0.28 inches |
|
Control voltage |
24V |
0.8 inches |
|
Power source |
3 phase/380V/50Hz |
|
|
Pendant |
U/D/E/W |
|
|
Weight |
88 kg |
194.01 pounds
|
