General

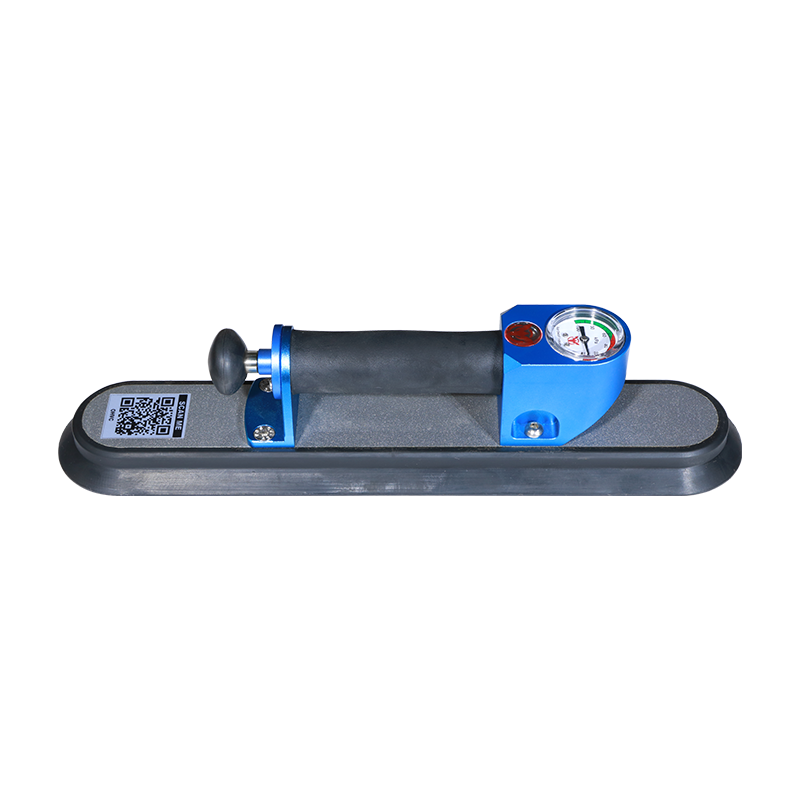

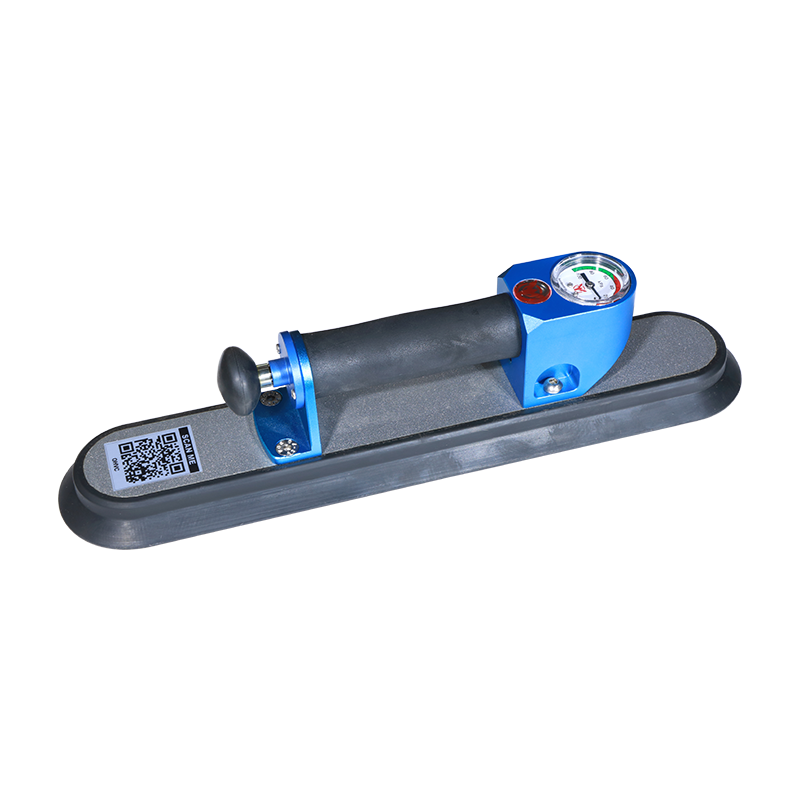

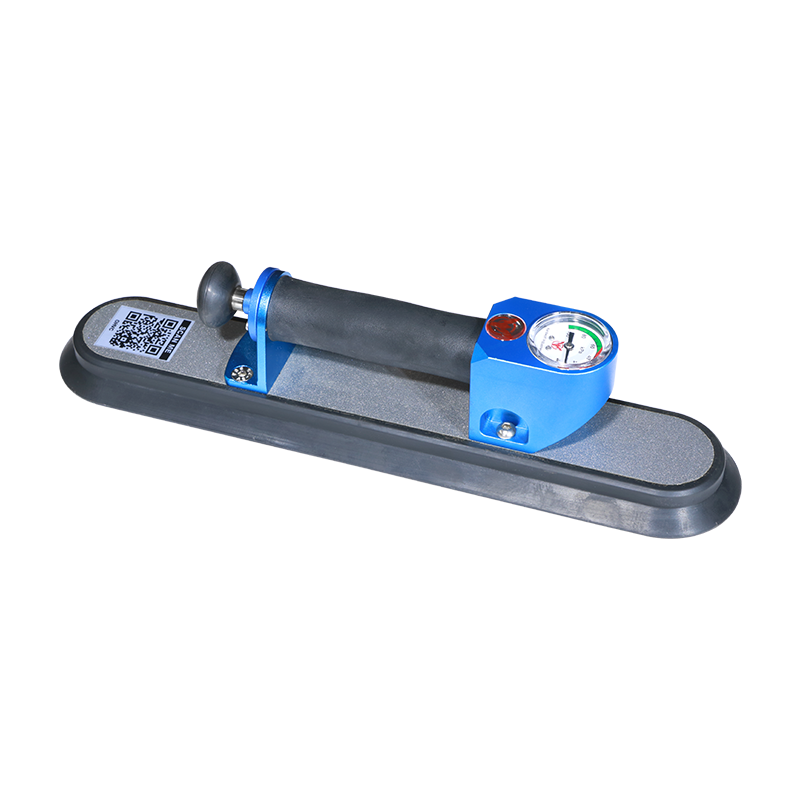

The Oval Hand Vacuum Cup Lifter is made of aluminum with an ergonomic handle, an integrated vacuum gauge, and a pump. It is suitable for non-porous materials with smooth, curved surfaces like glass, stone, and steel pipes. The vacuum is created by pulling the hand pump repeatedly. The vacuum can be continuously monitored via the pressure gauge. Additional pumping can be done at any time.
Features
- Rust-resistant parts withstand wet conditions associated with stone-working.
- Supplied with a protective carrying case.
- For smooth and curved surfaces.
- Three pumps produce a high vacuum.
Specifications
|
Metric
|
Imperial
|
|

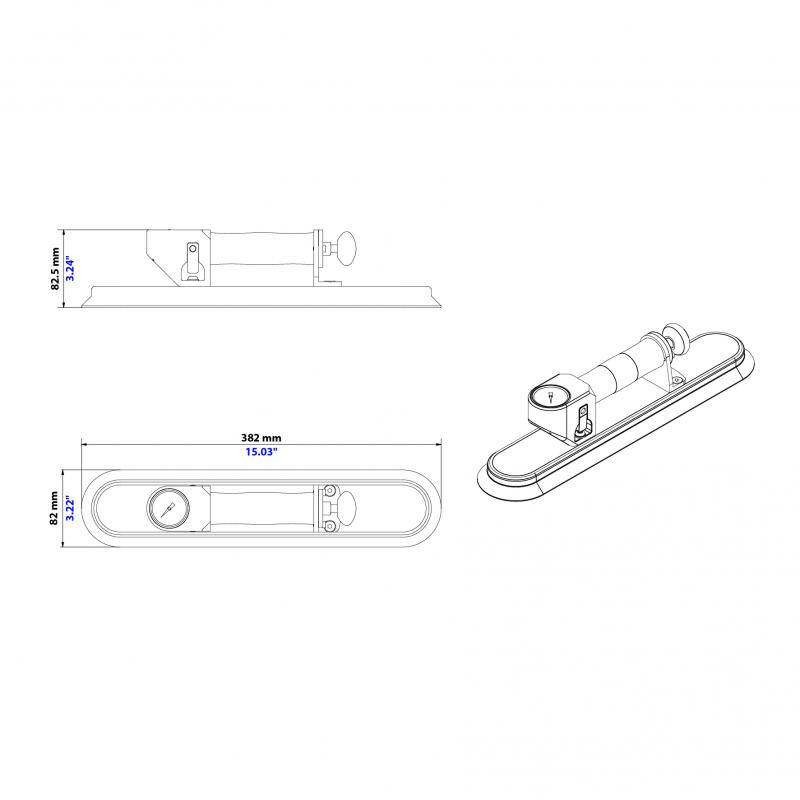

| Oval pad | Length: 380 mm Width: 80 mm |
15″ 3.1″ |
| Working load limit | 100 kg | 220 lb |
| Net weight | 1.3 kg | 2.9 lb |
| Gross weight | 1.9 kg | 4.2 lb |
| Packaging dimensions | L.450xW.150xH.110 mm | 17.7″x5.9″x4.3″ |
