General Description of Aardwolf Glass Lifter
The Aardwolf Glass Lifter AL30AWJH is a specialized lifting glass device designed exclusively for glass handling. Engineered to work with cranes and forklift booms, this unique clamp for lifting enables vertical lifting of glass sheets from a racking system. Its design allows for setting down the lifter with only a minimal gap between adjacent glass sheets, ensuring a secure grip on the top sheet. With a robust construction capable of handling glass sheets up to 1200 kg, this device combines precision with durability for efficient and safe operations.
Key Features of Aardwolf Glass Lifter
- Automated Locking: Gravity-assisted locking secures and releases the glass automatically.
- Extra-Wide Jaws: Provide balanced, stable support for glass sheets and similar materials.
- Protective Surfaces: Rubber-coated plates minimize scratches during handling.
- Precision Rollers: Side rollers center the glass and protect its edges.
- Versatile Integration: Ideal for use with cranes and forklifts as a reliable clamp for lifting.
- Heavy-Duty Capacity: Supports loads up to 1200 kg for reliable performance in demanding lifting tasks.

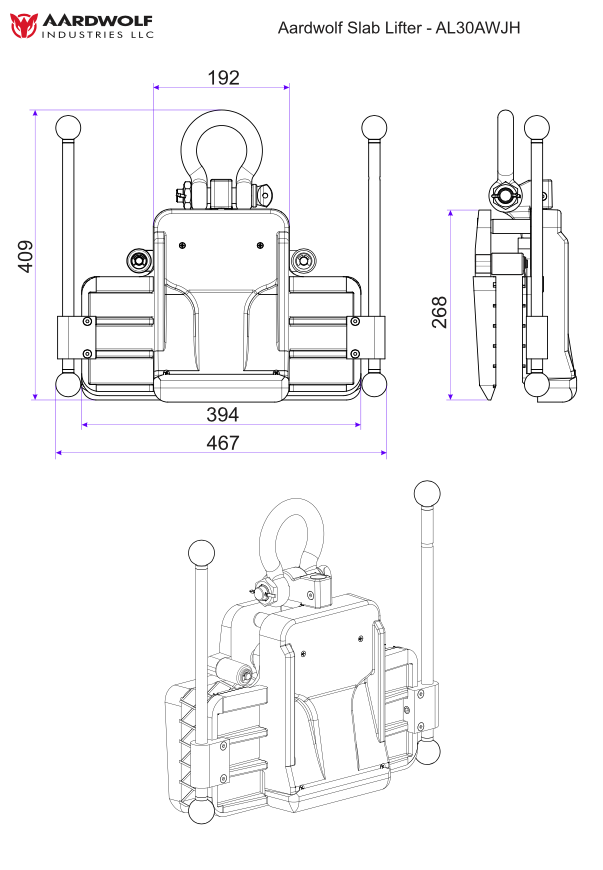

Specifications
|
Metric
|
Imperial
|
|
| Grip range | 0 – 30 mm | 0 – 1.2″ |
| Working load limit | 1200 kg | 2646 lbs |
| Net weight | 25.2 kg | 55.6 lbs |
| Gross weight | 26 kg | 57.3 lbs |
| Packaging dimensions | L.440 W.150 H.360 mm |
17.2″ 6″ 14.2″ |
Why Choose the Aardwolf Glass Lifter?
- Engineered for Glass Lifting: Specially designed to lift glass sheets vertically from racking systems with precision and stability.
- Tight Gap Optimization: Efficiently handles minimal space between sheets, maximizing productivity in confined setups.
- Innovative Auto-Lock Mechanism: Automatically secures the glass on pick-up and releases it upon set-down, streamlining one-man operation.
- Enhanced Safety and Protection: Rubber-coated clamp plates reduce the risk of surface damage, while comprehensive guidelines help ensure safe, balanced lifts.
- 2-Year Warranty: Offers peace of mind and dependable support for your investment.
