General

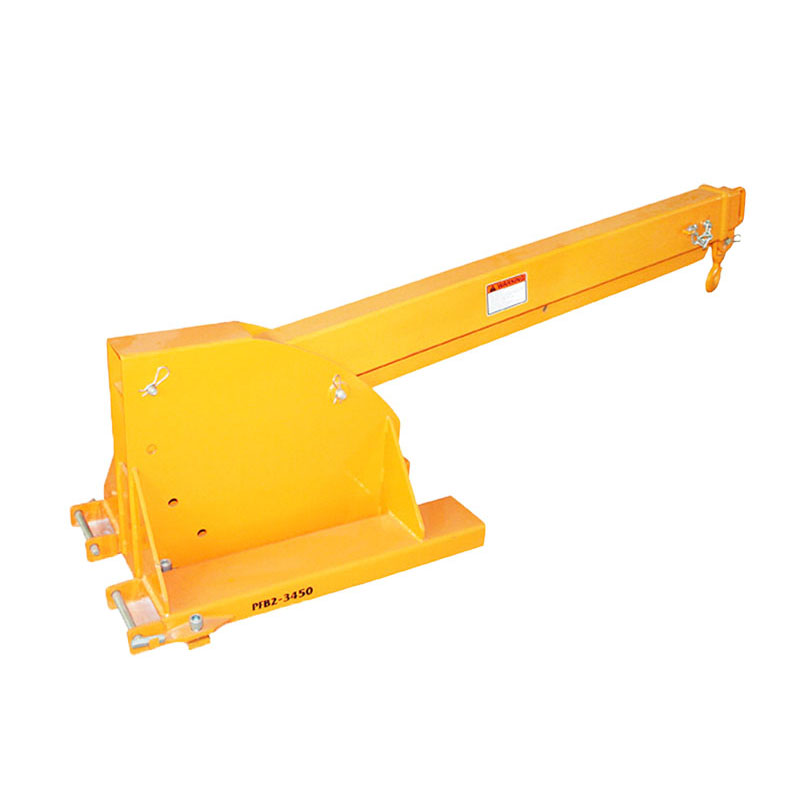

The Pivot Boom model PFB2-3450 is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Adjusts from 0 to 52 degrees
Specifications
|
Metric
|
Imperial
|
|

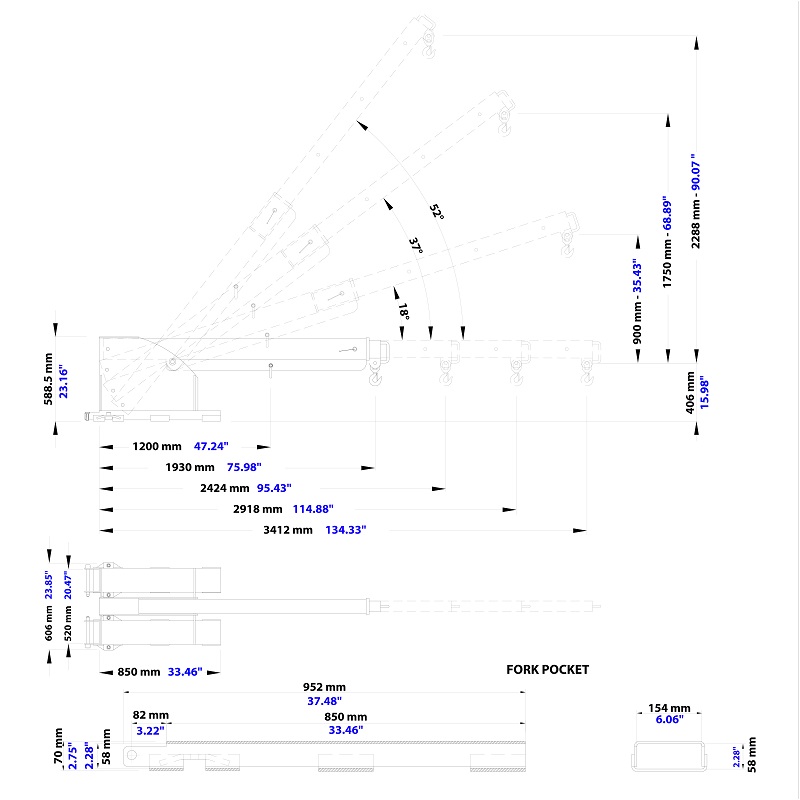

| Manual telescope | 1930 – 3412 mm | 76″ – 134.3″ |
| Increment | 494 mm | 19.4″ |
| Slip onto fork designed with fork pocket | 154×58 mm | 6.1″x2.3″ |
| Fork pocket | 366 mm | 14.4″ |

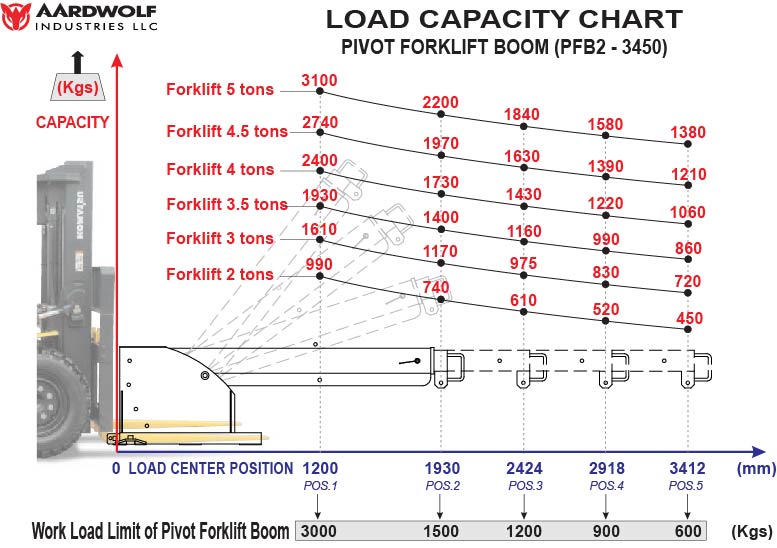

| Working load limit | Retracted: 1500 kg Extended: 600 kg |
3307 lb 1322 lb |
| Net weight | 196 kg | 432 lb |
| Gross weight | 206 kg | 454 lb |
| Packaging dimensions | L.2250xW.620xH.730 mm | L.88.6″xW.24.4″xH.28.7″ |
Note: Boom lift capacities depend completely on the forklift’s capacity.
