General
The Forklift Boom is made from high-grade Australian rectangular tube steel, which ensures strength, reliability, and safety. The Forklift Boom FB4-4800 is a telescoping two-section rectangular tube steel boom for use on 5 to 8-tonne forklift trucks. It offers versatility with maximum visibility for the driver.
Features
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Specifications
|
Metric
|
Imperial
|
|
| Manual telescope | 2800-4800 mm | 110″-189″ |
| Increment | 1000 mm | 39.4″ |
| Slip onto a fork designed with fork pockets | 193×81 mm | 7.6″x3.2″ |
| Fork pockets from the center to the center | 520 mm | 20.5″ |

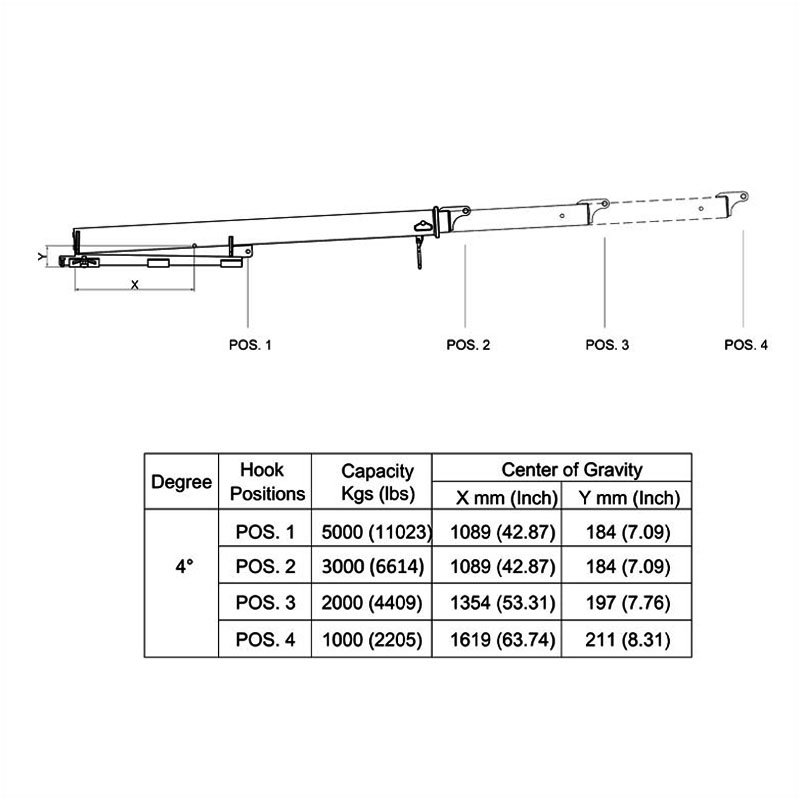

| Working load limit | Retracted: 3000 kg Extended: 1000 kg |
6614 lb 2204 lb |
| Net weight | 198 kg | 437 lb |
| Gross weight | 210 kg | 463 lb |
| Packaging dimensions | L.2850xW.820xH.580 mm | L.112.2″xW.32″xH.22.8″ |

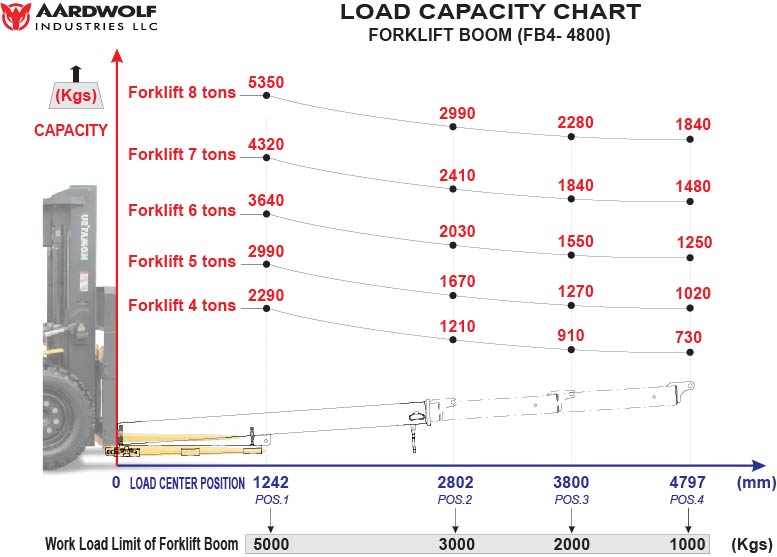

Note: Boom lift capacity depends completely on the capacity of the forklift being used
