General

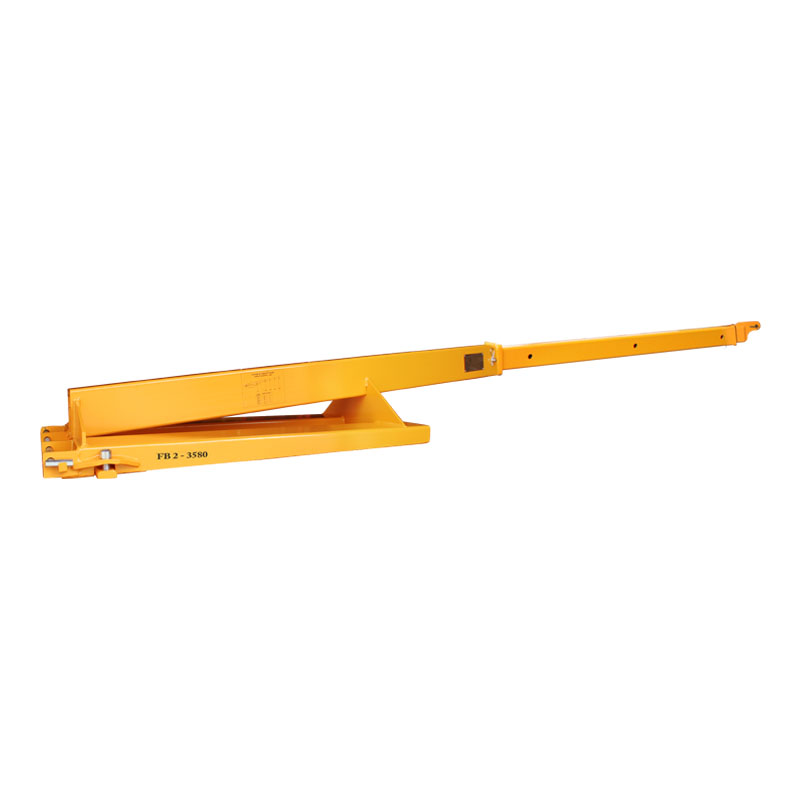

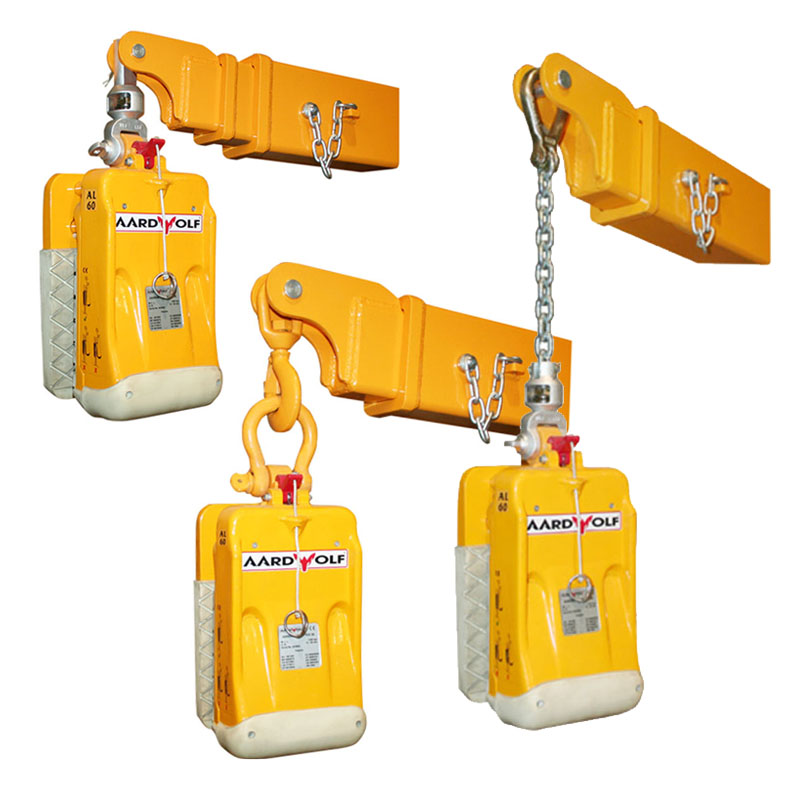

The Forklift Boom is made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Boom complements the patented range of Aardwolf lifting clamps. The Forklift Boom FB2-3580 is a telescoping two-section rectangular tube steel boom for use on 3-tonne forklift trucks and larger. It offers versatility with maximum visibility for the driver.
Features
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

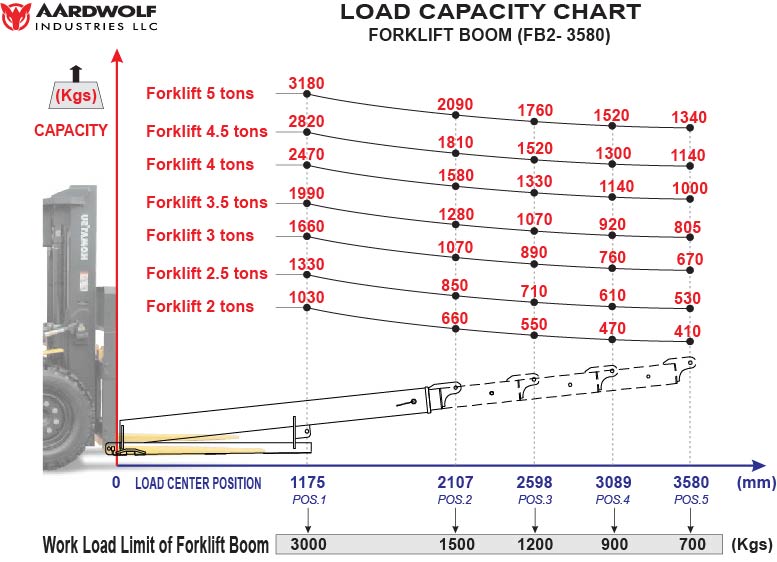

Note: Boom lift capacities depend completely on the forklift’s capacity.

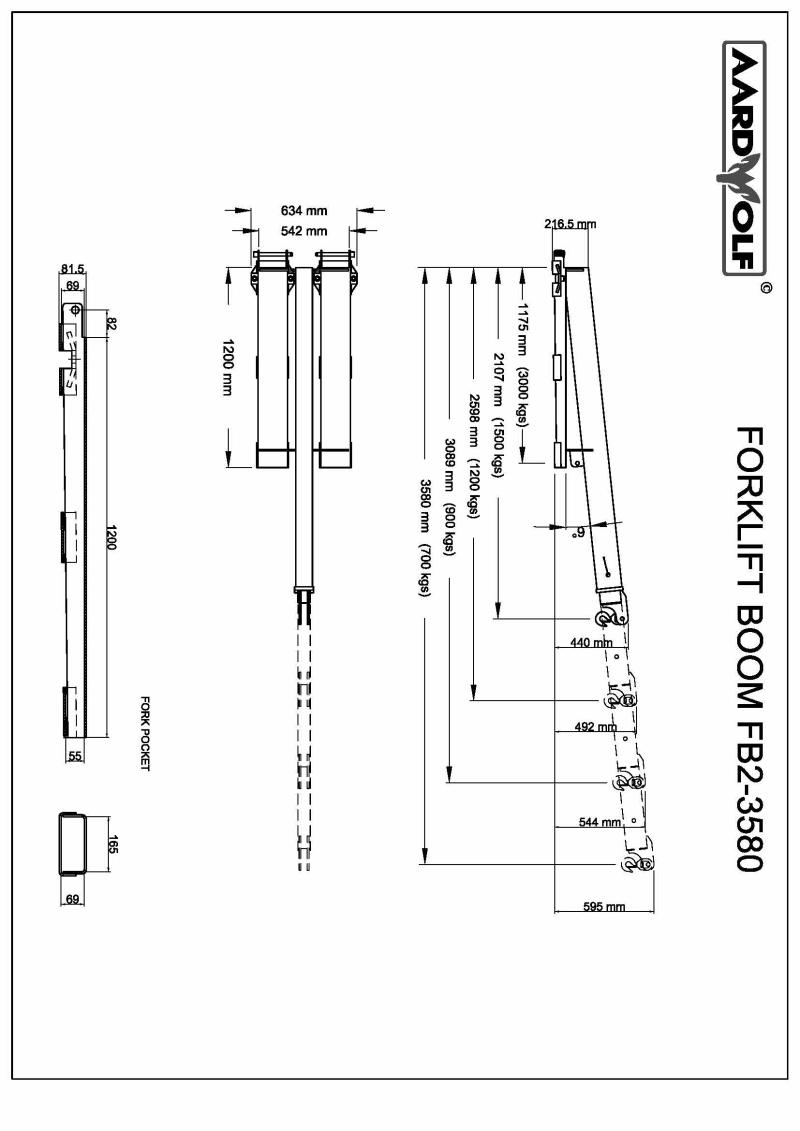

Specifications
|
Metric
|
Imperial
|
|
| Slip onto forks designed with fork pockets | 165×65 mm | 6.5″x2.6″ |
| Fork pockets from the center to the center | 377 mm | 14.8″ |
| Manually telescopes | 2107 – 3580 mm | 83”x141″ |
| Increment | 491 mm | 19.3″ |

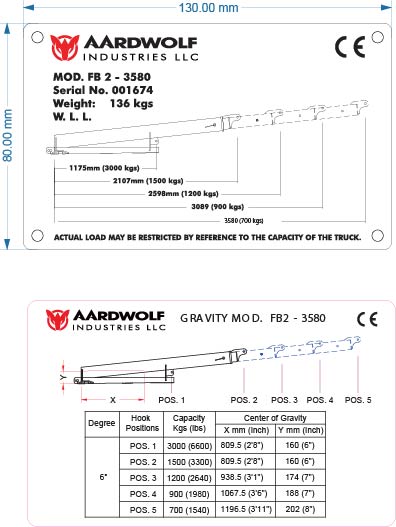

| Working load limit | Retracted:1500 kg Extended:700 kg |
3307 lb 1543 lb |
| Net weight | 136 kg | 300 lb |
| Gross weight | 146 kg | 322 lb |
| Packaging dimension | L.2250xW.630xH.550 mm | L.88.6″xW.24.8″xH.21.7″ |
