General
For storing and transporting finished work. It is ideal for transporting and storing material within the factory or transporting material to building sites. Often, people like to have two ‘A’ frames for one base. They will have one frame on their truck and one in the factory on the base. When the truck returns from one job, they will remove the empty frame from the truck, place a full frame on the truck, and place the empty frame on the base, ready to be reloaded. It makes sense. Frames can be loaded onto the truck with a forklift or crane.
Features
- Sturdy and safe structure for transporting materials
- Covered with a particular rubber layer for protecting materials
- The frame has two hooking points to hook to an overhead crane
- Stick-out handle facilitates the transportation of materials

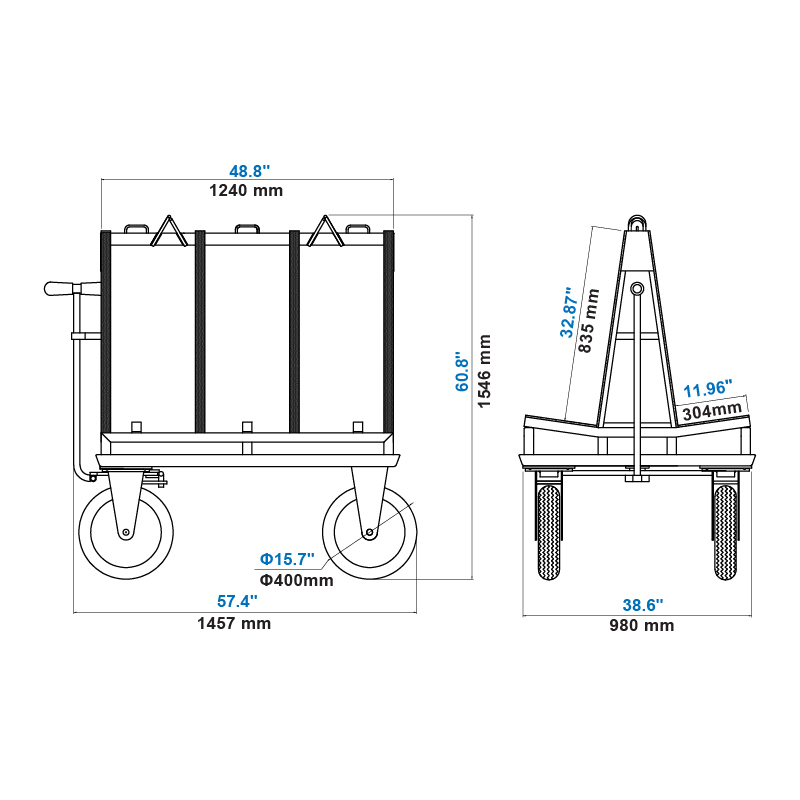

Specifications
|
Metric
|
Imperial
|
|
| Width of slab storage base area on each side | 300 mm | 11.8″ |
| Working load limit per side | 500 kg | 1102 lb |
| Total working load limit | 1000 kg | 2204 lb |
| Net weight | 176 kg | 388 lb |
| Gross weight | 197 kg | 434 lb |
| Packaging dimension | L.1350xW.1060xH.470 mm | L.53.1″xW.41.7″xH.18.5″ |
