General
It is ideal for transporting and storing material within the factory or transporting material to building sites. Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy maneuvering of your fully loaded cart in the workshop and construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
Features
- A sturdy structure is designed to eliminate any risk of the slab tipping over.
- Slabs are placed on unique rubber profiles and secured with 6 adjustable locking bars.
- Six locking bars per frame are mounted in slotted holes on the bottom.
- The frame features 2 hooking points to be picked up by an overhead crane.
- Built-in brackets on all underneath sides for forklift transport.
- Powder-coat paint finish.
Option: Frames can be hot galvanized and finished upon request.

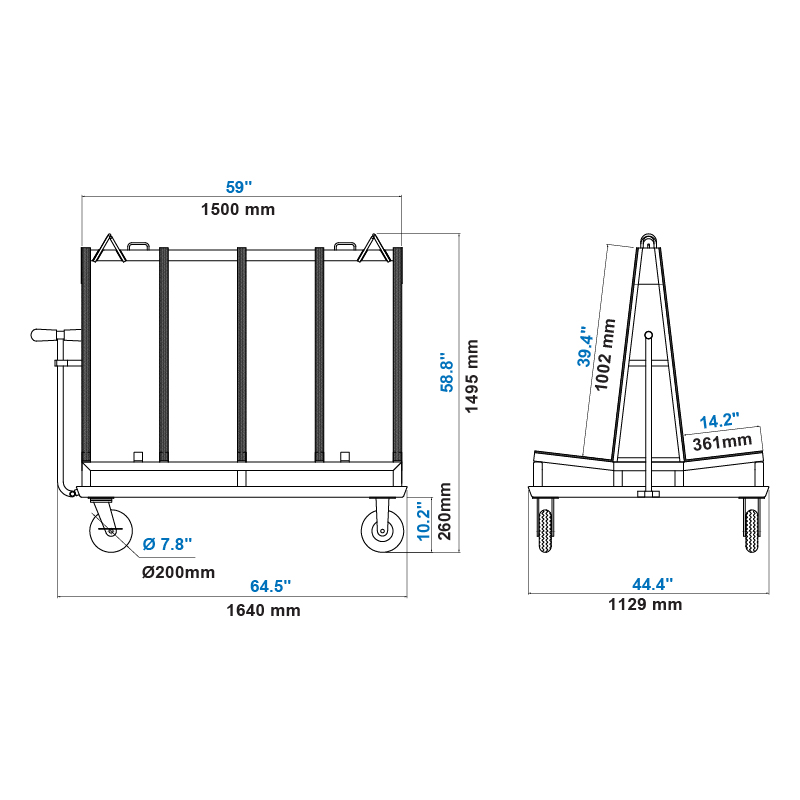

Specifications
|
Metric
|
Imperial
|
|
| Width of slab storage base area on each side | 361 mm | 14.2″ |
| Working load limit per side | 500 kg | 1102 lb |
| Total working load limit | 1000 kg | 2204 lb |
| Net weight | 127.5 kg | 281 lb |
| Gross weight | 128 kg | 282 lb |
| Packaging dimension | L.1560xW.1135xH.230 mm | L.61.4″xW.44.7″xH.9″ |
