General
It is ideal for transporting and storing material within the factory or transporting material to building sites. Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy maneuvering of your fully loaded cart in the workshop and on the construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
Features
- Sturdy structure is designed to eliminate any risk of the slab tipping over.
- Slabs are placed on unique rubber profiles and secured with eight adjustable locking bars.
- Eight locking bars per frame are mounted in slotted holes on the bottom.
- The frame features two hooking points to be picked up by an overhead crane.
- Built-in brackets on all underneath sides for forklift transport.
- Powder-coat paint finish
Option: Frames can be hot galvanized and finished upon request.

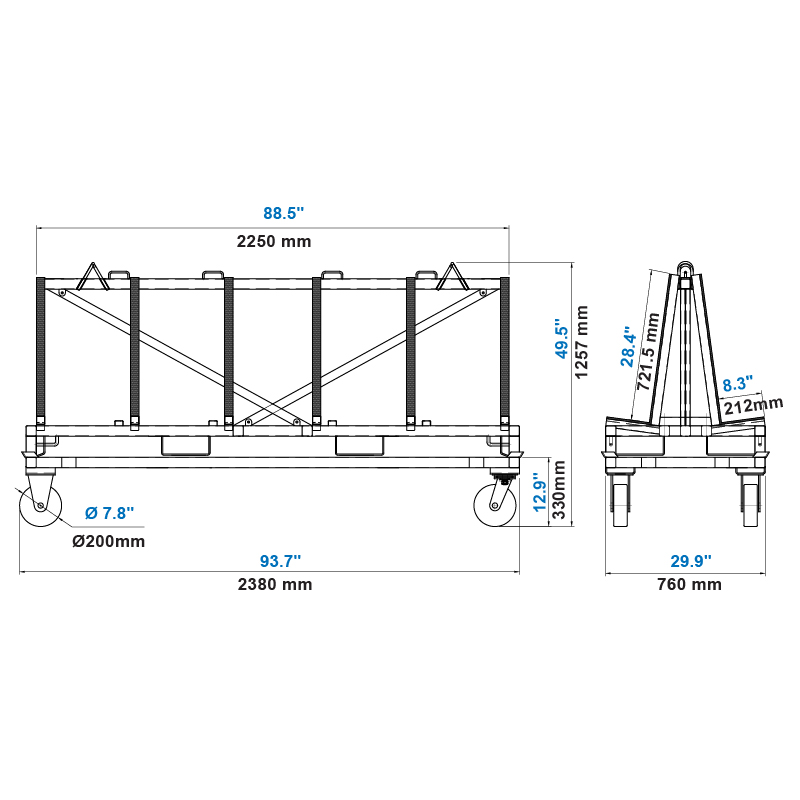

Specifications
|
Metric
|
Imperial
|
|
| Width of slab storage base area on each side | 212 mm | 8.3″ |
| Working load limit per side | 750 kg | 1653 lb |
| Total working load limit | 1500 kg | 3307 lb |
| Net weight | 177.5 kg | 391 lb |
| Gross weight | 178 kg | 392 lb |
| Packaging dimension | L.2390xW.800xH.280 mm | L.94″xW.31.5″xH.11″ |
