General

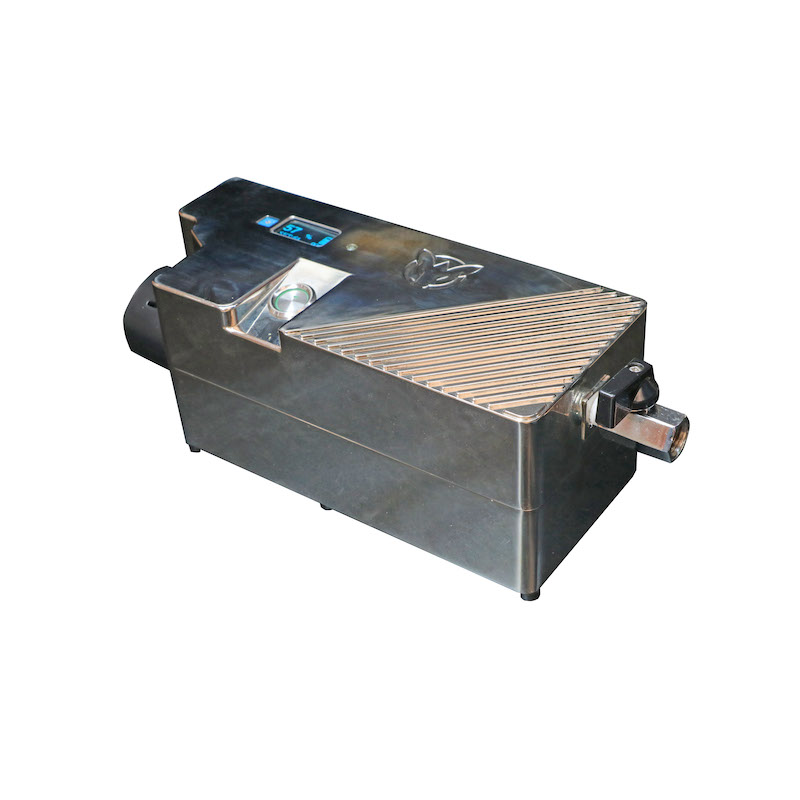

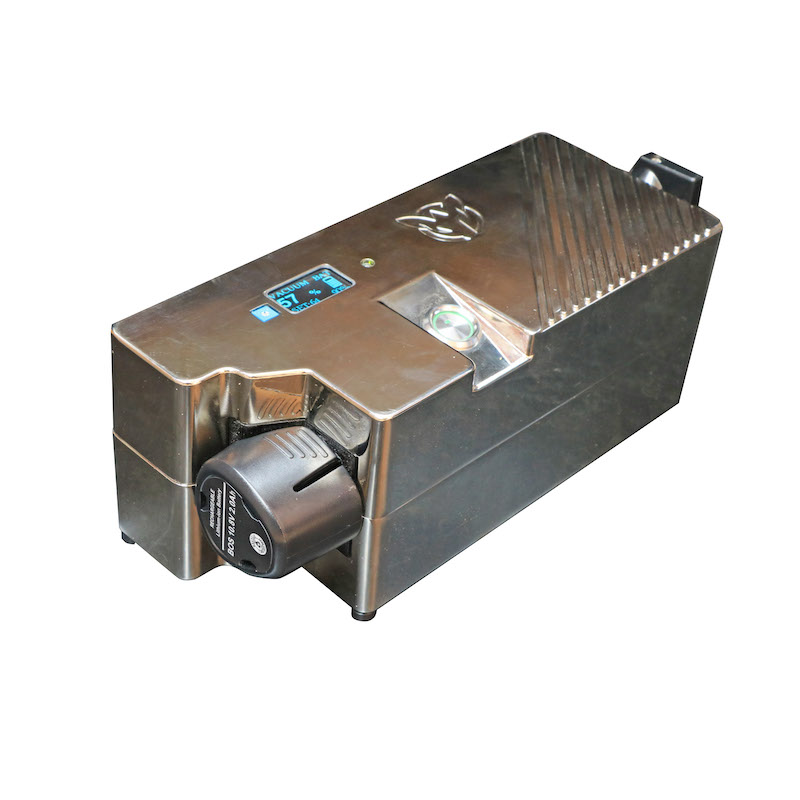

The Aardwolf Vacuum Pump, featuring an integrated reservoir, is a key tool for boosting the functionality of Aardwolf devices like the Battery Joint Setter, Miter Clamp, and Drill Stand. This system is meticulously engineered for automatic operation and comes equipped with a comprehensive set of features that streamline usage and increase efficiency.
Key features
- Vacuum Pump: 12V micro diaphragm gas pump, vacuum 80kpa, maximum flow 16L/min.
- Power Supply: 12V 3.0 Ah li-ion, clip-in battery
- Vacuum Reservoir Capacity: 770 cm³ (47.3 in) ensures ample vacuum storage for continuous operation.
- LCD Indicator: Offers clear, real-time monitoring of system statuses.
- Flexible: Enables versatile installation and operation across different settings.
- Integrated Non-Return Valve: Prevents the backflow of air into the reservoir, maintaining a stable vacuum.
- All Aluminium Water-resistant Construction: Enables operation in direct rain, enhancing its utility in outdoor or wet conditions.
Specifications
|
|
Metric |
Imperial |
|
Vacuum reservoir |
770 cm3 |
47″3 |
|
Weight |
1.88 kg |
4.15 lb |
|
Max Flow Rate |
16 liters/minute |
|
|
Max Vacuum |
80 kpa |
|
|
Battery |
12V – 3.0Ah |
