General
Aardwolf provides the Bundle Rack Kit, which contains a pair of galvanized steel rails 3m long, with rectangular galvanized steel tube posts and steel post bases. The rectangular post can be positioned anywhere along with the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa and a 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.
Features
- The bases and seven holes are folded steel, making the rack lightweight.
- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.

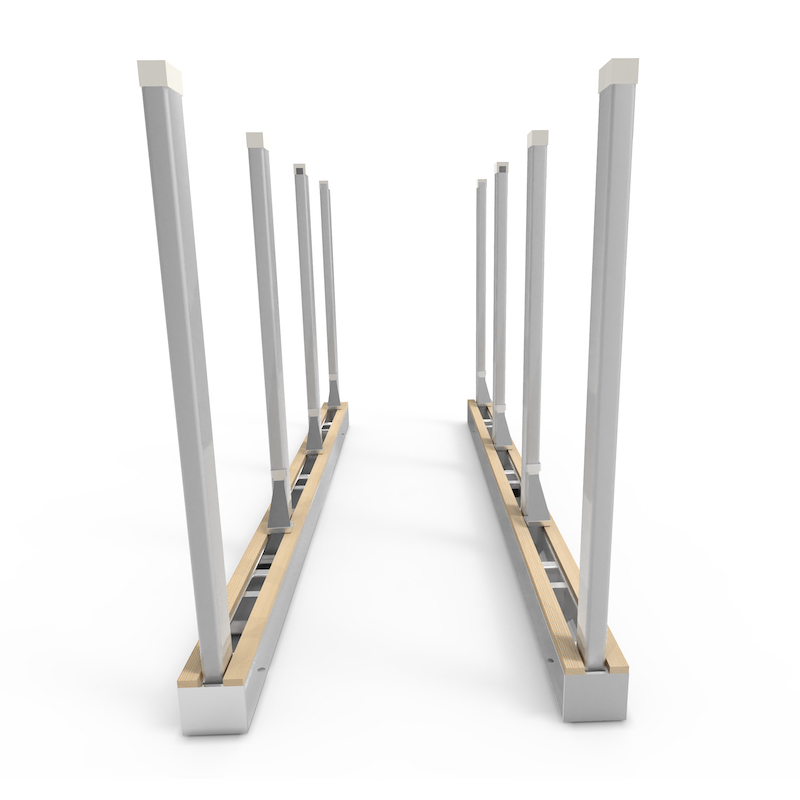

- The bundle rack rail is combined with eight steel tube posts, which have a height of 1200mm and a steel post base of 1200-1400mm for storage.
- This rack is the best storage solution, offering cost-saving and economic effects for users.
- Aardwolf has developed a simple calculator to calculate the slab storage capacity precisely.
Specifications
| Qty |
Metric
|
Imperial
|
|
| Galvanized steel rail | 2 | 3013x167x140 mm | 118.6″x6.6″x5.5″ |
| Rack height | 160 mm | 6.3″ | |
| Rectangular hole | 101×51 mm | 4″x2″ | |
| Increment | 111 mm | 4.4″ | |
| Steel tube post | 8 | 100x50x1200 mm | 4″x2″x47.2″ |
| Steel post base | 6 | 1200×1400 mm | 47.2″x55″ |
| Posts wall thickness | 5 mm | 0.2″ | |
| Rectangular rubber cap | 8 | 100×50 mm | 4″x2″ |
| Timber battens per rail | 50×20 mm | 2″x0.8″ |
To view the Slab Rack Storage Calculator, click here
This tool will help you decide how many posts and what type of posts you may require.
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts, as they may use posts with a different profile and steel of lower yield strength.
