General

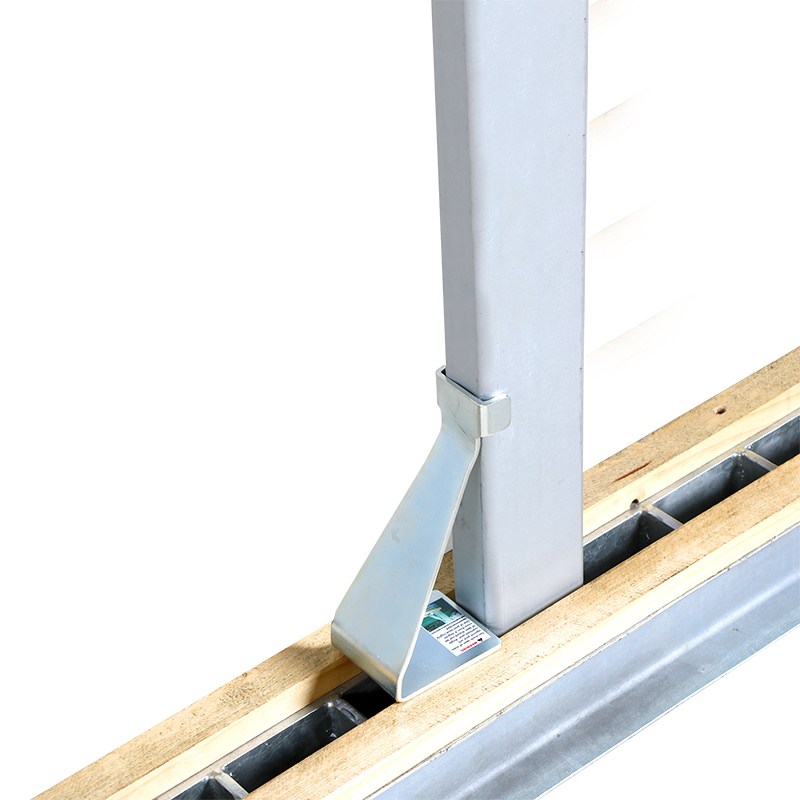

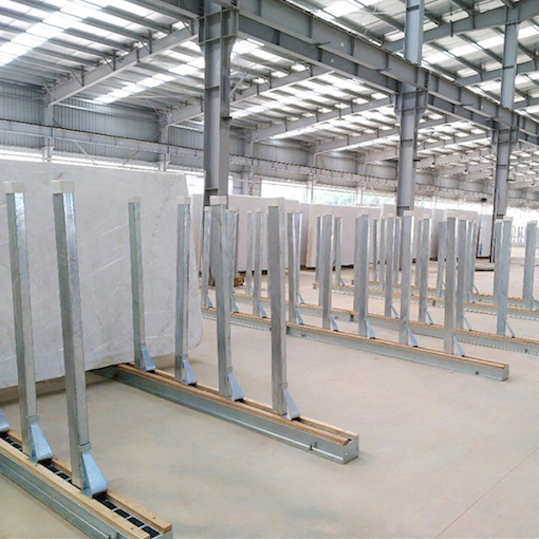

The Aardwolf bundle racks consist of a pair of galvanised steel rails 5.6m long, together with rectangular steel tubular posts. The rectangular post can be positioned anywhere along the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345 Mpa, with either a 4mm or 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.
Features

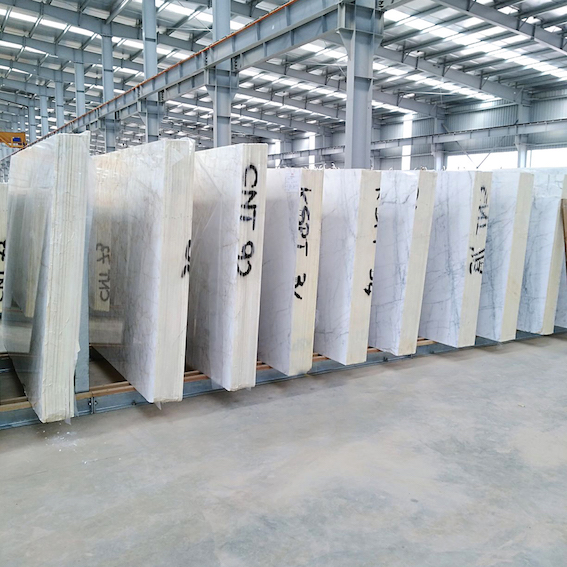

- The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the type of post selected, the slab thickness and dimensions
- Aardwolf has developed a simple calculator specifically to calculate the slab storage capacity
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Galvanised steel rail | 5585x164x165 | 219.8”x6.45”x6.5” |
| Rack height | 165 | 6.5” |
| Rectangle holes | 101.5×52 | 4×2” |
| Increment | 111.5 | 4.4” |
| Rectangular rubber post cap | 110×60 | 4.3”x2.4” |
| Rectangular tube post | 100×50 | 3.9”x2” |
| Post wall thickness | 5 | 0.2” |
| Timber battens per rail | 40×25 | 1.6”x1” |
| Net weight | 122/PCS | 269 |
| Gross weight | 122.5 | 270 |
| Packaging dimension | 5600x150x145 | 220.5”x5.9”x5.7” |
Working load limit:
- This tool will help you decide how many posts and what type of posts you may require.
- To view the Slab Rack Calculator, click here.
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts as they may use posts with a different profile and steel of a lower yield strength.
