General

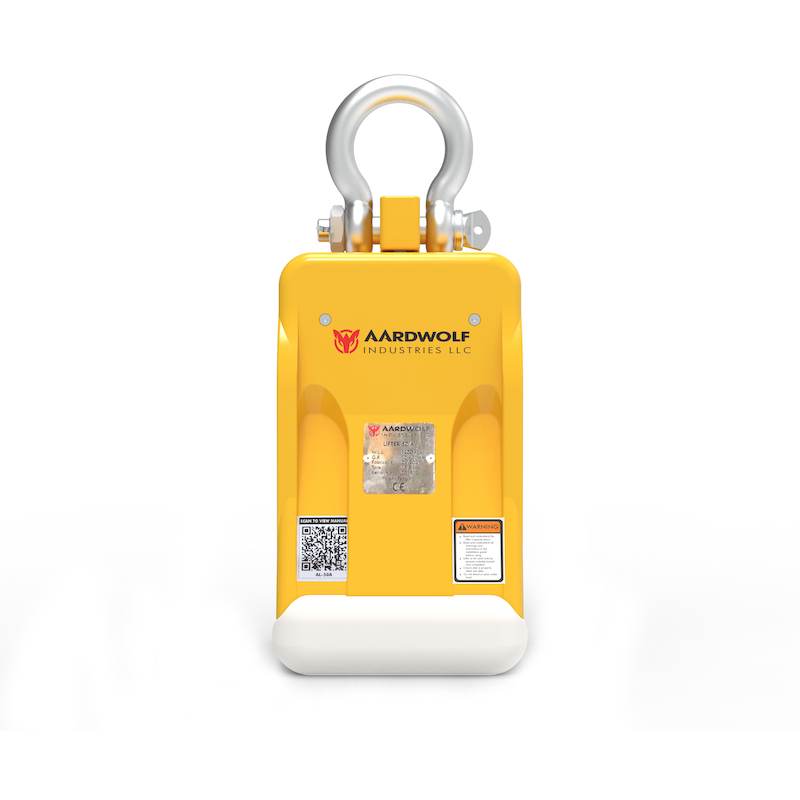

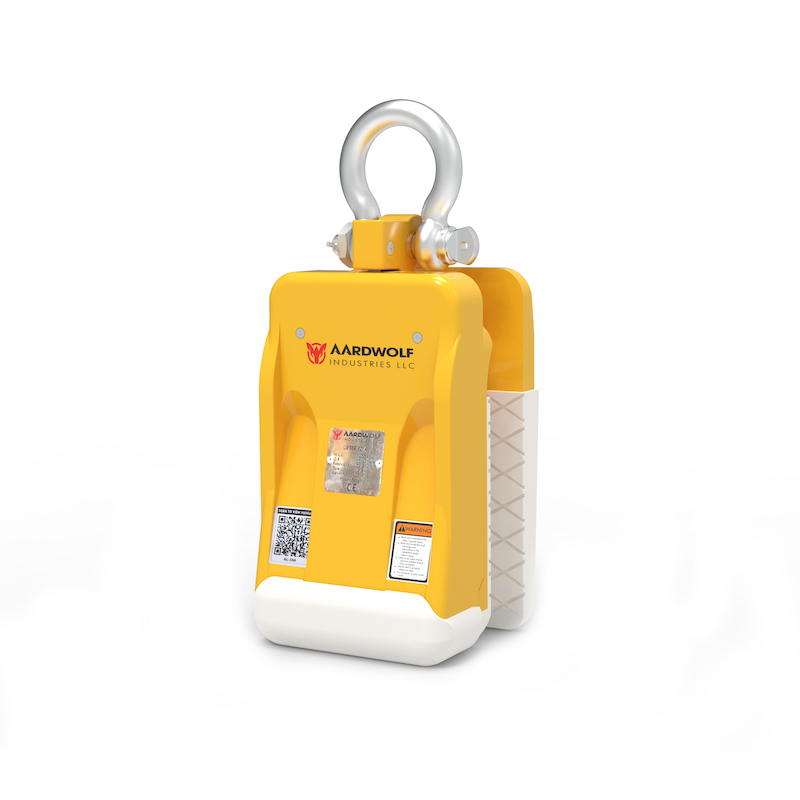

Aardwolf offers a new version of its patented Aardwolf Slab Lifters. The new Aardwolf Slab Lifter Automatic AL50A has an integrated auto-lock and unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set-down. In many situations, this makes moving and handling of slabs safer and more convenient.
Features
- Size: Being of compact construction, the Aardwolf Slab Lifter Automatic AL50A allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs placed alongside taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip it, which is generally well below the over-balance angle, thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. This Aardwolf Slab Lifter Automatic has a force-multiplying factor of approximately 2.5 to 1.
Specifications
|
Metric
|
Imperial
|
|
| Grip range | 10 – 50 mm | 0.4″ – 2″ |
| Working load limit | 1200 kg | 2646 lb |
| Net weight | 19 kg | 42 lb |
| Gross weight | 20 kg | 44 lb |

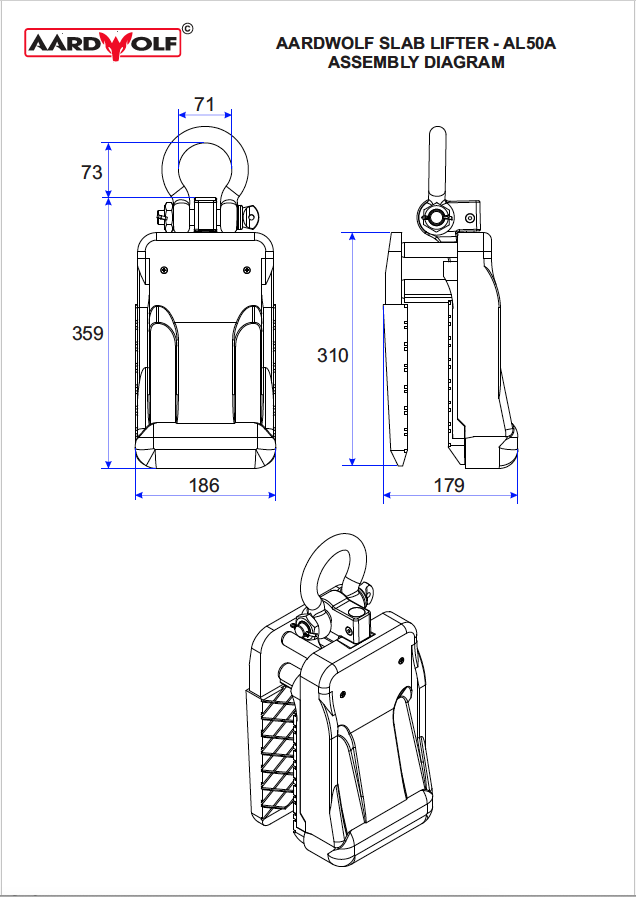

| Packaging dimensions | L.380xW.210xH.230 mm | 15″x8.3″x9″ |
