General

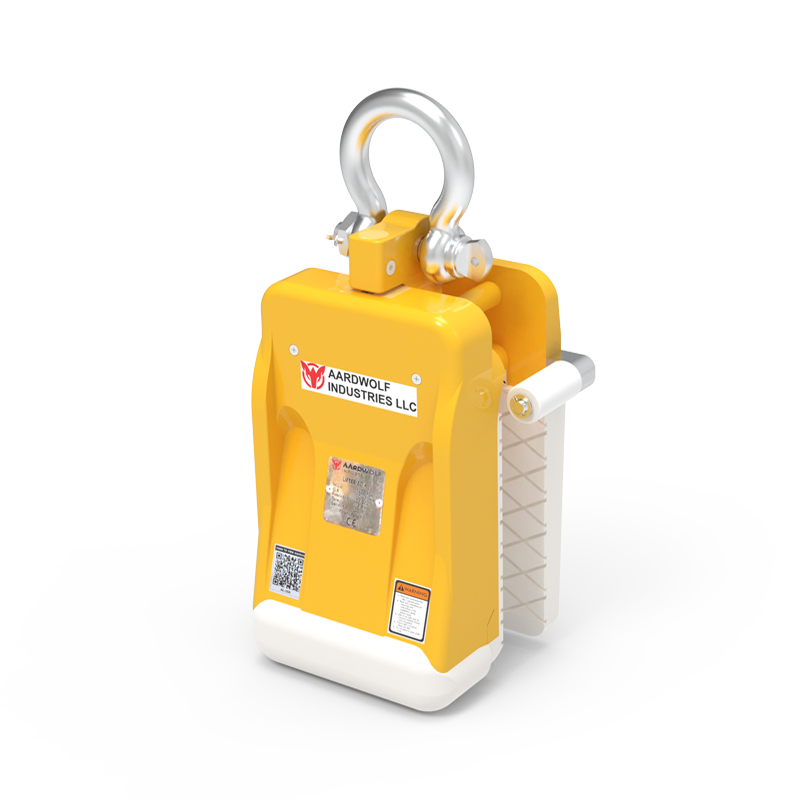

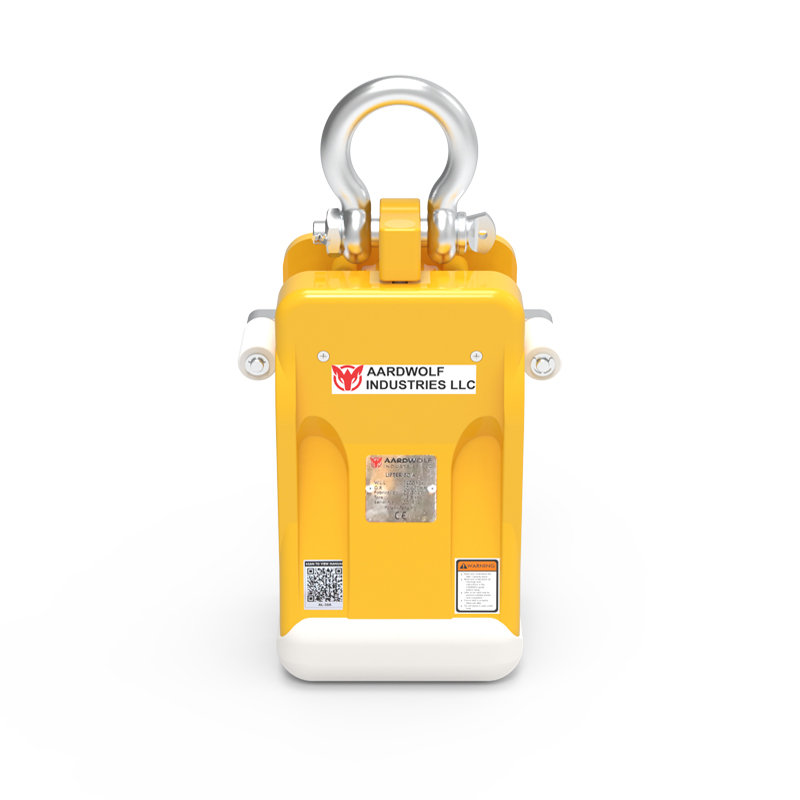

Aardwolf offers a new version of its patented Aardwolf Slab Lifters. The new Aardwolf Slab Lifter Automatic AL40A has an integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release the slabs on set down. In many situations this makes moving and handling of slabs safer and more convenient.
Features
- Size: Being of a compact construction, the Aardwolf Slab Lifter Automatic AL40A allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. This Aardwolf Slab Lifter Automatic has a force-multiplying factor of approximately 2.5 to 1.
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lb)
|
|
| Grip range | 3 – 40 | 0.1” – 1.6” |
| Working load limit | 1200 | 2646 |
| Net weight | 18.7 | 41.2 |
| Gross weight | 19.4 | 42.8 |
| Packaging dimensions | 380x210x230 | 15”x8.3”x9” |
